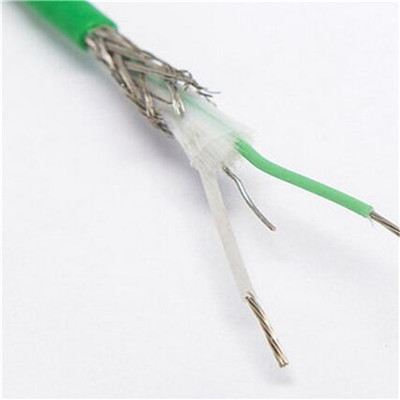

FEP Insulation Flexible Extension cable Thermocouple Wire
 |
Product Name:
FEP Insulation Flexible Extension cable Thermocouple Wire
Number :
 |
Product Description:
FEP Insulation Flexible Extension cable Thermocouple Wire
1.Description:
1).conductor : Cu, Cu-Ni
2).Insulation: FEP
3) Jacket: FEP
4). Temperature range: 0-200ºC
5). Color:KC typePositive:Cu(red );Negative: Cu-Ni (Blue)
6).Packing:100/200/310/500m per Roll
| thermocouple compensation cable | |
| Grade: | Extension Grade or Thermocuple Grade |
| temperature range, deg. c | -50 to +400 |
| type of coductor: | K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX |
| number of conductors: | 1,2,3,4,6 |
| Conductor type | Strand or Solid |
| material of insulation: | fiberglass, telfon, PTFE, PVC, silicone,so on |
| material of jacket: | fiberglass, telfon, PTFE, PVC, silicone,so on |
| shielding material: | Stainless Steel Braid and Tinned Copper wire braid |
| Thermocouple cable | |||||
| Type | Conductor | Grade | Working temperature | ||
| Insulation material | deg.C | ||||
| S | Cu, Ni-Cu | A | PVC | -25~70C | |
| B | |||||
| R | Cu, Ni-Cu | A | Silicone | -60~200C | |
| B | |||||
| K | Cu, Ni-Cu/ | A | Telfon | -60~250C | |
| Ni-Cr, Ni-Si | B | ||||
| N | Cu, Ni-Cu/ | A | Fiberglass | -60~500C | |
| Ni-Cr, Ni-Si | B | ||||
| E | Ni-Cr,Ni-Cu | A | Kapton | -60-300C | |
| B | |||||
| J | Iron,Ni-Cu | A | |||
| B | |||||
| T | Cu, Ni-Cu | A | |||
| B | |||||
