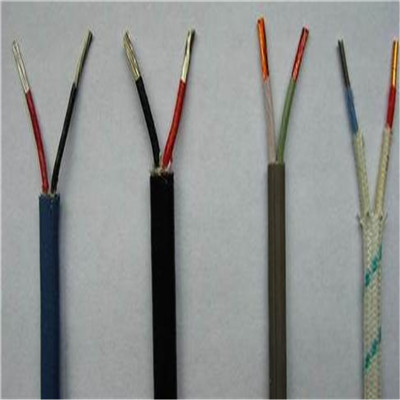

Chromel/Alumel Fiberglass Thermocouple Wire Type K

Product Name:

Chromel/Alumel Fiberglass Thermocouple Wire Type K

Number :

Product Description:

Chromel/Alumel Fiberglass Thermocouple Wire Type K

The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement.

The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control.

The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables.

The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

Thermocouple Extension Wire Compensating Cable
Type of Compensating Conductor	Equipped Thermocouple	Thermocouple Index	Compensating Conductor Allong-wire		Insulation Layer Coloration
			Positive	Negative	Positive	Negative
SC	PtRh10-Platinum thermocouple10	S	SPC Cu	SNC	Red	Green
				Cu Ni
RC	PtRh13-Platinum thermocouple13	R	RPC Cu	RNC Cu Ni	Red	Green
KCA/KCB/KX	Ni Cr- Nisi-loy Thermocouple	K	KPCA Fe/	KNCA Cu Ni/	Red	Blue/
			KPCB Cu/	KNCB Cu Ni/		Blue/
			KPX Ni Cr	KNX Ni Si		Black
NC/NX	Ni Cr- Nisi-loy Thermocouple	N	NPC Fe	NNC Cu Ni	Red	Grey
			NPX	NNX Ni Si		Grey
			Ni Cr Si
EX	Ni Cr- Copper-nickel Thermocouple	E	EPX Ni Cr	ENX Cu Ni	Red	Brown
JX	Fe- Copper-nickel Thermocouple	J	JPX Fe	JNX Cu Ni	Red	Purple
TX	Cu- Copper-nickel	T	TPX Cu	TNX Cu Ni	Red	White
	Thermocouple
