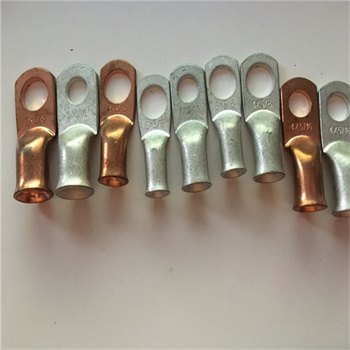

XSC16-10,Tinned copper cable lug

Product Name:

XSC16-10,Tinned copper cable lug

Number :

Product Description:

XSC16-10,Tinned copper cable lug

1. Wire size : AWG 16 - 1000 or 1.5 mm² - 630 mm²

2. Stud size : inch #8 - 3/4'' or 4.0mm - 20mm

3. Standard : UL486

4. Certification : ISO9001,SGS,CE,ROHS

XSC16-10,Tinned copper cable lug

Product Name	SC series
Material	C11000,C1100,CU-ETP,E-CU58 for high conductivity
Surface	Tin-plated to protect against corrosion for Salt spray experiment 48H
Hardness	HV: 120 - 70
Maching acuuracy class	High
Pullout test	Conform to UL486 standard
Contact resistance	Conform to UL486 standard
Flammability rating of material	Conform to UL486 standard
