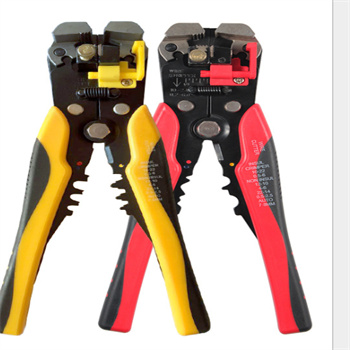

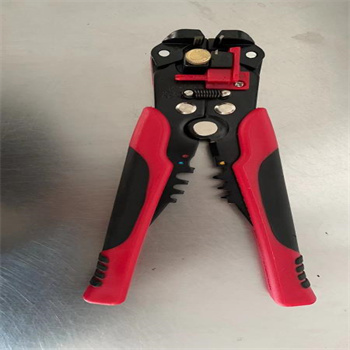

HS-D1/D2 Peeling Pliers (for 0.2mm2 to 6mm2 cable)

Product Name:

HS-D1/D2 Peeling Pliers (for 0.2mm2 to 6mm2 cable)

Number :

Product Description:

Material: cutter head: zinc alloy cutter head: Cr12MoV, hardness HRC55-60, wire-electrode cutting die sets

Pliers: A3 heat-treated handle: PP + TPR Features:

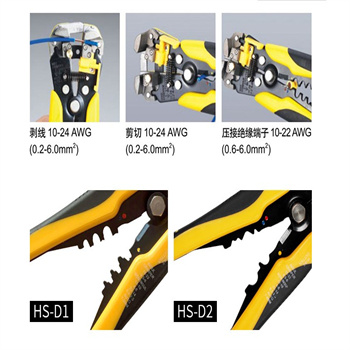

Stripping range: 24-10AWG / 0.2-6mm2;

Crimping of cutting function terminals: insulated terminals 22-10AWG/0.5-6mm2 non-insulated terminals 12-10AWG/4-6mm2 non-insulated terminals crimped: 16-14AWG/1.5-2.5mm2 non-insulated terminals crimped: 22-18AWG/0.5 -1mm2

How to use the adjustment screw:

1. Rotate the adjustment screw to adjust the bite force of the blade, decrease counterclockwise, increase clockwise

2. When stripping the thin thread, adjust the screw counterclockwise.

3. If the wire is broken, please adjust the screw counterclockwise.

4. If it is difficult or impossible to peel off, please adjust the screw clockwise.
