Zhengzhou Wubai Cable and Wire Co.,Ltdsolar DC cable, battery cable, earth cable,pump cable, DC/AC electrical cable |
||||
 |
Product Name:

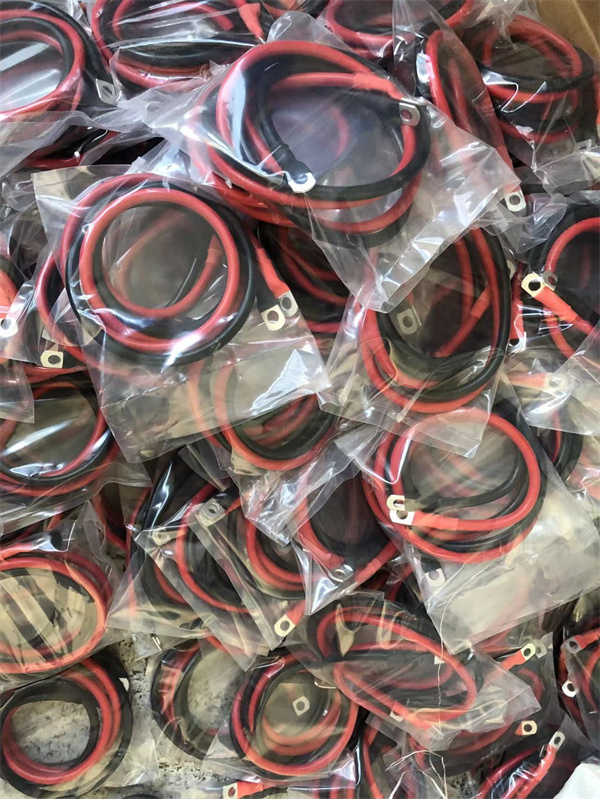

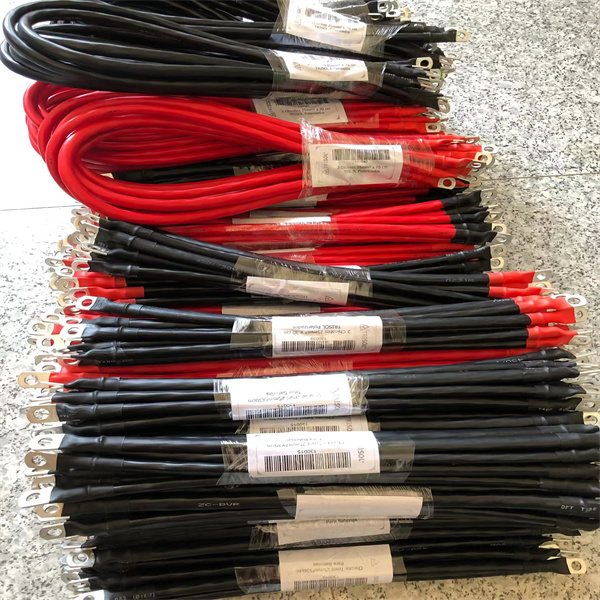

2 AWG Battery Interconnect Copper Cable 3/8" w/ Lugs Battery Banks, Battery Charger
Number :
 |
2.Insulation Material: PVC
3.Maximum Voltage: 450/750 VDC
4.Cable Length: 30CM,60CM,100CM or customized
5.Sectional area:1x16mm2 or customized
6.Ring Terminal:Fits 3/8 inch bolt (M10),5/16 inch bolt(M8) etc
7.Operating Temperature: -50°C to 105°C
8.Standards: RoHS,UL,ISO9001
|
Insulation color |
|
|
Red,black |
|
Terminal material |
Copper with tin plated |
|
Usage |
Marine, Car, Truck, RV, Solar |
|
Wire Size |
Customized |
|
Wire length |
Customized |
|
Samples |
Free |
·
Features:
· Rated 600 Volts Max with 105C Dry and 75C Wet (BC-5W2) temperature ratings and will remain flexible in extreme cold weather
· Jacket and insulation are resistant to oil, gas, fungus, salt water, battery acid, heat, abrasion and sunlight
· Multiple ratings including - BOAT CABLE (UL1426), THW (building wire), MTW (machine tool wire), AWM (Appliance Wiring Material) and CSA TEW.
|
SGT Automotive Battery Cable |
|
|
|
|||||
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
|
6 |
37/.0260 |
0.06 |
0.305 |
137 |
SAE J-1127 |
|
|
4 |
61/.0250 |
0.065 |
0.35 |
168 |
SAE J-1127 |
|
|
2 |
133/.0218 |
0.065 |
0.44 |
258 |
SAE J-1127 |
|
|
1 |
133/.0243 |
0.065 |
0.48 |
322 |
SAE J-1127 |
|
|
1/0 |
133/.0275 |
0.065 |
0.525 |
431 |
SAE J-1127 |
|
|
2/0 |
133/.0309 |
0.065 |
0.575 |
497 |
SAE J-1127 |
|
|
3/0 |
361/.0210 |
0.078 |
0.661 |
603 |
SAE J-1127 |
|
|
4/0 |
361/.0239 |
0.078 |
0.726 |
779 |
SAE J-1127 |
|
Services & Advantages
1.OEM / ODM
2. Enough stock to meet fast delivery.
3. 2 year's quality guarantee.
4. Alibaba trade assurance.
5. Form E, FTA,C/O is available.
6. Good after-sale service team to solve problems until customer received goods well
7. Inspect every product before delivery
8. Welcome to visit our factory
