Product Name:

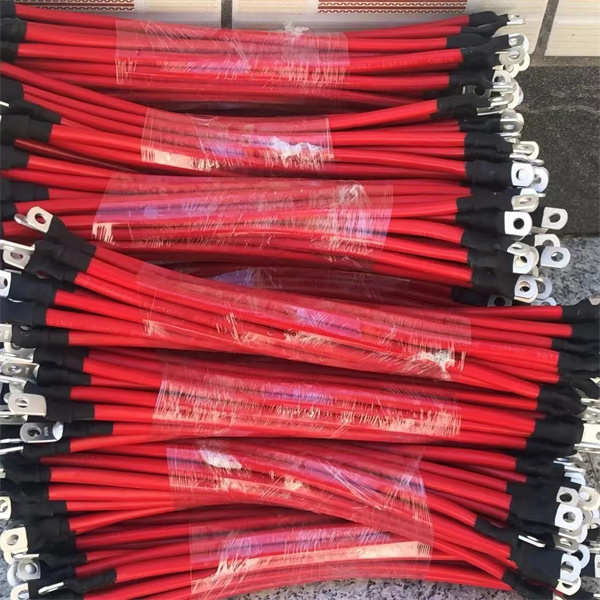

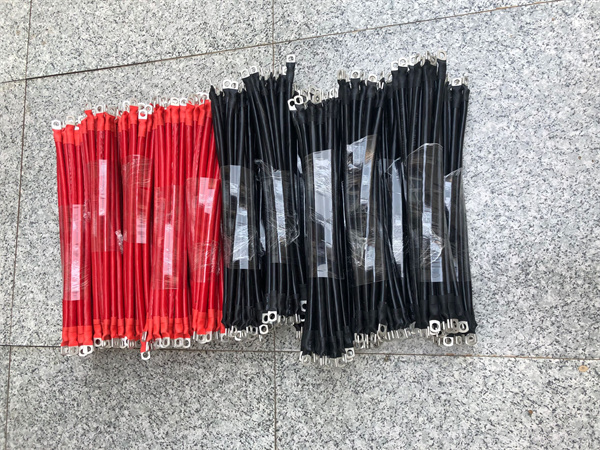

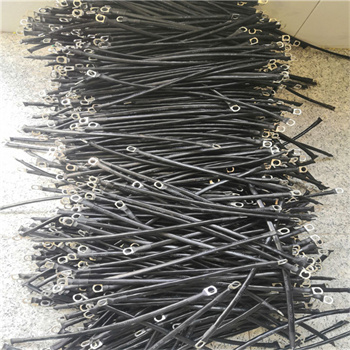

16mm2 Electrical Connecting Battery Cable Power Cable with Terminals
Number :
 |
Conductor material: Bare Copper
Gauge: 500 – 6
Insulation material: TPE
Operating Temperature: -40°C to 90°C
Meets Requirements: NEC
Applications
Secondary voltage resistance welding cable leads.
Temporary power uses
National Electrical Code article 630 electric welders.
Power supply applications not exceeding 600 volts AC.
Features
Special stranding and packaging are available upon request.
Oil and Flame Resistant.
Custom print available upon request.
S.A.E J1127 Thermoplastic Elastomer Battery Cable
|
GAUGE |
STRANDING |
INSULATION |
NOMINAL O.D. |
STANDARD |
APPROX. WEIGHT |
||||
|
THICKNESS |
PACKAGE |
||||||||
|
in |
mm |
in |
mm |
in |
mm |
m |
LBS/1000FT |
kg/km |
|
|
6 |
7*37/0.01 |
7*37/0.25 |
0.06 |
1.52 |
0.310 |
7.87 |
1000 |
113 |
168.3 |
|
4 |
7*52/0.01 |
7*52/0.25 |
0.06 |
1.52 |
0.345 |
8.76 |
1000 |
147 |
219.0 |
|
2 |
12*52/0.01 |
12*52/0.25 |
0.06 |
1.52 |
0.417 |
10.59 |
500 |
236 |
351.5 |
|
1 |
12*65/0.01 |
12*65/0.25 |
0.08 |
2.03 |
0.500 |
12.70 |
500 |
313 |
466.2 |
|
1/0 |
19*52/0.01 |
19*52/0.25 |
0.08 |
2.03 |
0.530 |
13.46 |
500 |
378 |
563.0 |
|
2/0 |
19*65/0.01 |
19*65/0.25 |
0.08 |
2.03 |
0.583 |
14.81 |
500 |
463 |
689.6 |
|
3/0 |
19*81/0.01 |
19*81/0.25 |
0.08 |
2.03 |
0.622 |
15.80 |
500 |
563 |
838.6 |
|
4/0 |
19*106/0.01 |
19*106/0.25 |
0.08 |
2.03 |
0.710 |
18.03 |
500 |
734 |
1093.3 |
|
250 |
19*133/0.01 |
19*133/0.25 |
0.12 |
3.05 |
0.855 |
21.72 |
500 |
938 |
1397.2 |
|
350 |
19*7*26/0.01 |
19*7*26/0.25 |
0.12 |
3.05 |
0.995 |
25.27 |
500 |
1282 |
1909.5 |
|
500 |
19*7*38/0.01 |
19*7*38/0.25 |
0.12 |
3.05 |
1.170 |
29.72 |
500 |
1840 |
2740.7 |
Features:
1. High quality car battery cable.
2. Battery cable, 10AWG、8AWG、6AWG、4AWG etc are optional.
3. PVC jacket in various colors and transparent are optional.
4. Length: As your requests.
5. The cable can be printed with your specifications or logo.
6. One or two sample can be free if it available, but freight collect.
