Product Name:

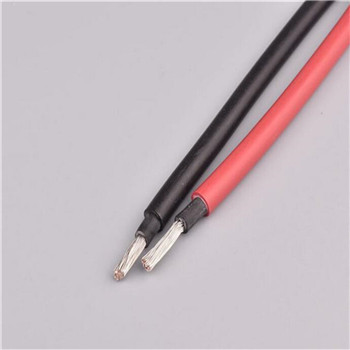

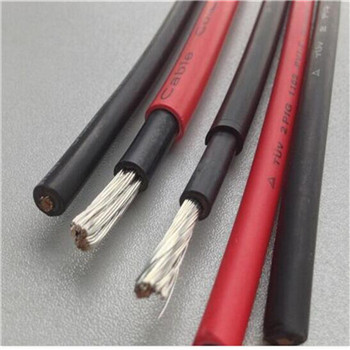

10mm2,16mm2,25mm2 single core TUV Certification Solar PV DC Cable 0.6/1.0kV
Number :
 |
|
solar cable specifications |
|
|
Core Conductor: |
Tinned annealed copper(stranded core) |
|
Popular Sizes: |
1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2 |
|
Cable Conductor: |
Stranded tinned annealed copper |
|
Insulation: |
XLPE |
|
Jacket: |
XLPE(black, red) |
|
Nominal Volvatage: |
Uo/U= 600/1000VAC, 1000/1800VDC |
|
Test Voltage: |
6500V, 50HZ, 5Min |
|
Fire Performance: |
IEC 60332-1, UL1581 VW-1 |
|
Bending Radius |
Fixed installation>4X, Occasionally moved>5X |
1.Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.
2.Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.
3.Halogen free and low smoke, Rohs standard.
4.UV resistance.
5.Temperature rating:-40Degree to 125Degree, cold resistance.
6.Certificate: TUV UL CCC CSA
7.Power cable for photovoltaic system.
|
Single-Core Solar Cable |
|||||
|
Cable Size (mm2) |
Conductor Strand (mm) |
Nominal insulation thickness (mm) |
Nominal sheath thickness (mm) |
Overall Dia (mm) |
Max. Conductor Resis(20ºC) (Ω/Km) |
|
1×2.5 |
49/0.25 |
0.8 |
0.8 |
5.4±0.3 |
8.21 |
|
1×4 |
56/0.30 |
0.8 |
0.9 |
6.2±0.3 |
5.09 |
|
1×6 |
84/0.30 |
0.8 |
0.9 |
6.8±0.3 |
3.39 |
|
1×10 |
84/0.40 |
1.0 |
1.0 |
9.0±0.3 |
1.95 |
|
1×16 |
126/0.40 |
1.0 |
1.0 |
10.0±0.3 |
1.24 |
|
1×25 |
196/0.40 |
1.2 |
1.2 |
12.2±0.5 |
0.795 |
|
1×35 |
276/0.40 |
1.2 |
1.2 |
13.6±0.5 |
0.565 |
