Product Name:

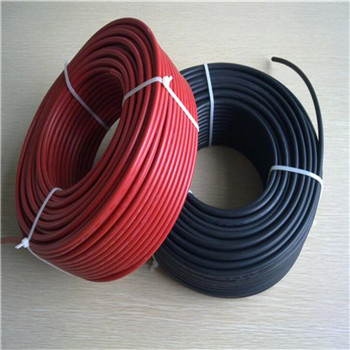

4mm2 6mm2 EN 50618 H1Z2Z2-K Solar DC Cable 0.6/1KV
Number :
 |
Insulation: XLPO
Insulation Color: Red
Temperature Range: -20°C to +90°C
Nominal Voltage: 0.6/1KV
Test Voltage: 3.5 KV
Standard: TUV
PRODUCT DESCRIPTION
Application:
For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter
Standard:
Cross-linked solar cables - type H1Z2Z2-K, certified according to EN 50618
Product features:
Flame retardant,Weather/UV-resistant,Ozone-resistant,Good notch and abrasion resistance

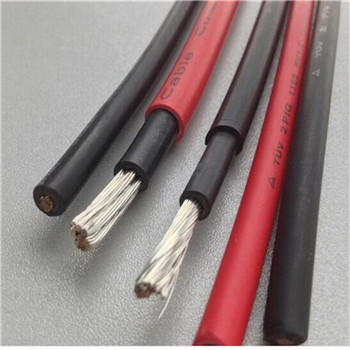

Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
Cable Colour : Black or Red,Blue
Benefits:
1.Reduction of flame propagation and of toxic combustion gases in the event of fire
2.Robust against mechanical impacts
3.For outdoor applications
4.Service Life: Expected life span ≥25 years
|
Single-Core Solar Cable |
|||||
|
Cable Size (mm2) |
Conductor Strand (mm) |
Nominal insulation thickness (mm) |
Nominal sheath thickness (mm) |
Overall Dia (mm) |
Max. Conductor Resis(20ºC) (Ω/Km) |
|
1×2.5 |
49/0.25 |
0.8 |
0.8 |
5.4±0.3 |
8.21 |
|
1×4 |
56/0.30 |
0.8 |
0.9 |
6.2±0.3 |
5.09 |
|
1×6 |
84/0.30 |
0.8 |
0.9 |
6.8±0.3 |
3.39 |
|
1×10 |
84/0.40 |
1.0 |
1.0 |
9.0±0.3 |
1.95 |
|
1×16 |
126/0.40 |
1.0 |
1.0 |
10.0±0.3 |
1.24 |
|
1×25 |
196/0.40 |
1.2 |
1.2 |
12.2±0.5 |
0.795 |
|
1×35 |
276/0.40 |
1.2 |
1.2 |
13.6±0.5 |
0.565 |
|
|
|
|
|
|
|
|
Twin Core Solar cable |
|||||
|
Cable Size (mm2) |
Conductor Strand (mm) |
Nominal insulation thickness (mm) |
Nominal sheath thickness (mm) |
Overall Dia (mm) |
Max. Conductor Resis(20ºC) (Ω/Km) |
|
2×2.5 |
49/0.25 |
0.7 |
0.8 |
5.0±0.3×10.6±0.3 |
8.21 |
|
2×4 |
56/0.30 |
0.8 |
0.9 |
6.2±0.3×13.8±0.3 |
5.09 |
|
2×6 |
84/0.30 |
0.8 |
1.0 |
7.2±0.3×15.3±0.3 |
3.39 |
|
2×10 |
84/0.40 |
1.0 |
1.0 |
9.0±0.3×19.2±0.3 |
1.95 |
