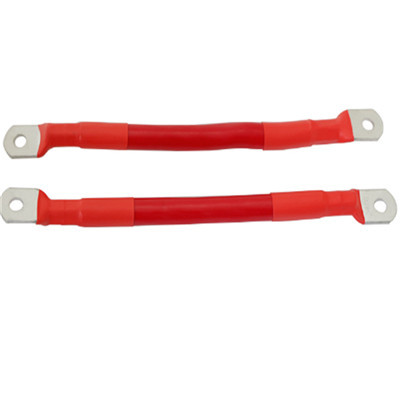

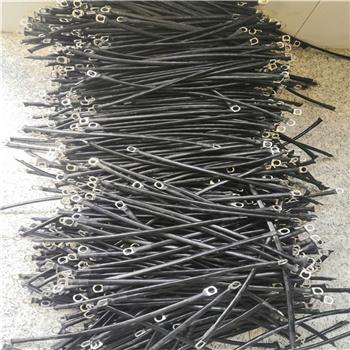

3ft 6ft 12ft Battery cable with 5/16inch or 3/8inch cable lugs on both ends 12V
 |
Product Name:
3ft 6ft 12ft Battery cable with 5/16inch or 3/8inch cable lugs on both ends 12V
Number :
 |
Product Description:
Application
battery cable is often used in main power applications in small cars, RV trailers, golf carts, and small marine crafts.
Also great for smaller solar cable applications.
Be aware that the total length of both the positive and negative cables have to be considered
Construction
conductor: 99.9% pure copper strands wire
insulation: PVC
The average outside diameter of the cable is approximately 0.330 inches.
Rated for low voltage and battery use up to 60 volts DC and 25 Volts AC.
The internal copper stranded core is highly conductive maximizing current flow while still being highly flexible.
| AWG Size | Conductor Stranding | Nom. Insul. Thick. (in) | Nom. O.D. (in) | Approx LBS/MFT | SAE Spec |
| 6 | 37/.0260 | 0.06 | 0.305 | 137 | SAE J-1127 |
| 4 | 61/.0250 | 0.065 | 0.35 | 168 | SAE J-1127 |
| 2 | 133/.0218 | 0.065 | 0.44 | 258 | SAE J-1127 |
| 1 | 133/.0243 | 0.065 | 0.48 | 322 | SAE J-1127 |
| 1/0 | 133/.0275 | 0.065 | 0.525 | 431 | SAE J-1127 |
| 2/0 | 133/.0309 | 0.065 | 0.575 | 497 | SAE J-1127 |
| 3/0 | 361/.0210 | 0.078 | 0.661 | 603 | SAE J-1127 |
| 4/0 | 361/.0239 | 0.078 | 0.726 | 779 | SAE J-1127 |
