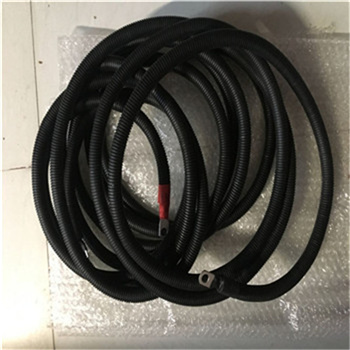

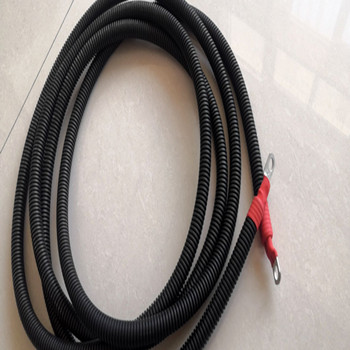

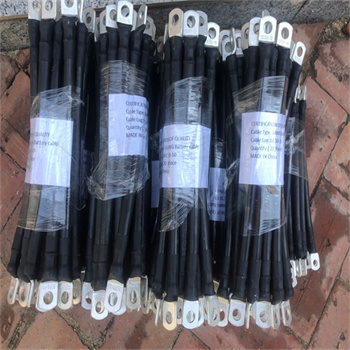

SAE J1127 PVC 70degree 50V welding cable Power Cable Harness-Red & Black
 |
Product Name:
SAE J1127 PVC 70degree 50V welding cable Power Cable Harness-Red & Black
Number :
 |
Product Description:
Construction:
Conductor: Bare copper
Insulation: Polyvinylchloride (PVC)
Color & Print Options: Available in standard battery circuit colors of black and red with optional custom printing available.
Stranding Options: SGT Cable is available with higher stranding.
Applications:
Type SGT Battery Cable may be used in starter or battery ground circuits in accordance with SAE J-1127.
Recommended temperature range is -40°C to +105°C.
Manufactured to meet Ford (M1L-56A) and Chrysler (MS-3450)
SAE J1127 PVC 70℃ 2AWG 50V welding cable Power Cable Harness-Red & Black
|
AWG Size
|
Conductor Stranding
|
Nom. Insul. Thick. (in)
|
Nom. O.D. (in)
|
Approx LBS/MFT
|
SAE Spec
|
|
6
|
37/.0260
|
0.06
|
0.305
|
137
|
SAE J-1127
|
|
4
|
61/.0250
|
0.065
|
0.35
|
168
|
SAE J-1127
|
|
2
|
133/.0218
|
0.065
|
0.44
|
258
|
SAE J-1127
|
|
1
|
133/.0243
|
0.065
|
0.48
|
322
|
SAE J-1127
|
|
1/0
|
133/.0275
|
0.065
|
0.525
|
431
|
SAE J-1127
|
|
2/0
|
133/.0309
|
0.065
|
0.575
|
497
|
SAE J-1127
|
|
3/0
|
361/.0210
|
0.078
|
0.661
|
603
|
SAE J-1127
|
|
4/0
|
361/.0239
|
0.078
|
0.726
|
779
|
SAE J-1127
|
