Zhengzhou Wubai Cable and Wire Co.,Ltd

designed for power and control use. Suitable for high or low temperature applications where
traditional PVC materials would become brittle. If the cable burns an insulating layer of silicone
dioxide will remain, rendering the cable short circuit proof.
 glass fibre braid silicone multicore  cable 180degree
halogen free and suitable for use at constant temperatures up to 180°C. The galvanised steel wire
braid (GSWB) armour provides protection against mechanical damage.

The silicone compound used is more accurately called polymerizedsiloxane or polysiloxanes. It is
resistant to vegetable and animal fats, to many types of oil and many diluted acids. There is no
decomposition on exposure to alcohol or alkaline solutions.

The term halogen free (interchangeable with the term zero halogen) guarantees that if burnt the
cable will produce less than 0.5% HCL (hydrogen chloride) emissions. This provides increased safety
in the case of a fire. For a more in-depth explanation of halogen free & zero halogen properties please
see our LSZH Control Flex front page.

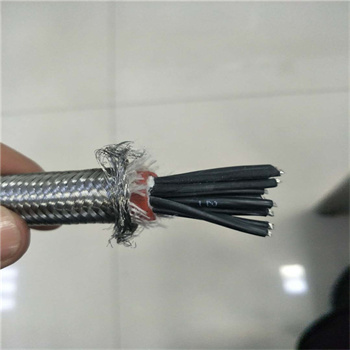

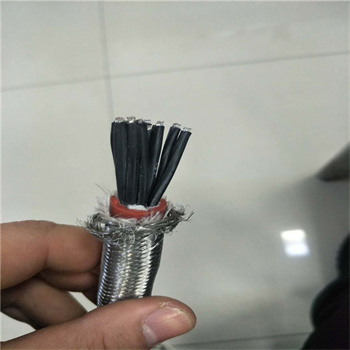

Construction
fine stranded tinned copper conductors
silicone rubber core insulation
brick red silicone inner sheath
optional glass fibre braid
galvanised steel wire braid outer
