Product Name:

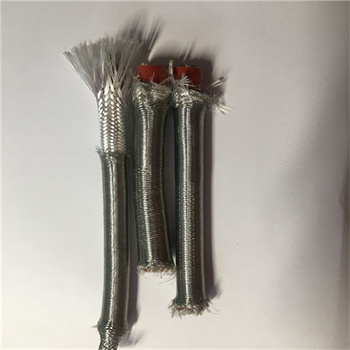

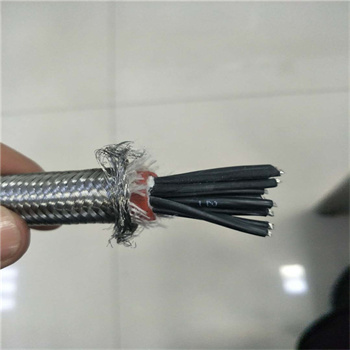

SIHF/P braid armoured multicore silicone flexible cable 180 degree
Number :
|
Special silicone multicore cable with higher
heat-resistance range adapted to
DIN VDE 0250-1 and
DIN VDE 0285-525-2-83 /
DIN EN 50525-2-83
Temperature range
-60°C to +180°C
(for short time +220°C)
Temperature limit
at the conductor in operation +180°C
Nominal voltage U0/U 300/500 V
Test voltage 2000 V
Breakdown voltage min. 5000 V
Insulation resistance
min. 200 MOhm x km
Power rating
at ambient temperature up to +145°C to
DIN VDE 0100 for higher temperatures valid:
150°C - load value 100%
155°C - load value 91%
160°C - load value 82%
165°C - load value 71%
170°C - load value 58%
175°C - load value 41%
Minimum bending radius
flexing 10x cable Ø
fixed installation 5x cable Ø
Radiation resistance
up to 20x106 cJ/kg (up to 20 Mrad)
Cable structure
Tinned copper conductor, fine wire
acc. to DIN VDE 0295 cl.5 /
BS 6360 cl.5 / IEC 60228 cl.5
Core insulation of silicone
Core identification to DIN VDE 0293-308
- up to 5 cores coloured
- from 6 cores, black with continuous
white numbering
GN-YE conductor, 3 cores and above
Cores stranded in layers with
optimal lay length
Sheath of silicone
Glass fibre tape over the sheath
Galvanized steel wire outer braiding
