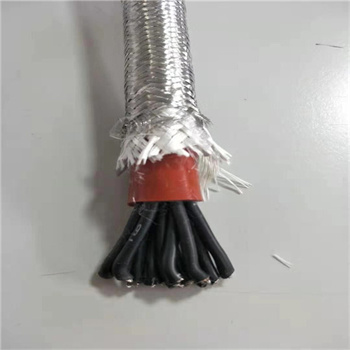

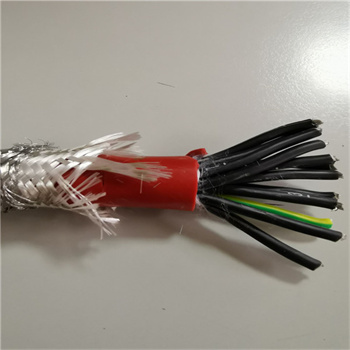

fiberglass braided multi core silicone rubber electrical cable
 |
Product Name:
fiberglass braided multi core silicone rubber electrical cable
Number :
 |
Product Description:
Conductor: Flexible copper conductors according to IEC 228 class 5. Available in bare, tin or nickel plated copper.
Insulation: Silicone rubber.
Sheath: Silicone rubber.
Braid: Fibreglass braid
Working Voltage : 300/ 500 V. Test Voltage : 2000 V.
Characteristics of cable
Continuous working temperature :
-60°C to +200°C. Peaks at +220°C
Minimum bending radius approx 15 x Cable Ø
Resistance to sunlight.
Halogen-free.
Does not spread flame.
Application
Used to power electrical devices located in areas with high continuous temperatures.
Suitable for wiring in metal industry
Lighting equipment
Electrical approved devicesrequiring a non - flammable cable.
Hot-rolling mills, coking plants, foundries.
Resistant to: Resistant to vegetable and animal fat, many types of oil and diluted acids.
No decomposition occurs when exposed to alcohol, alkaline solutions. Resistant to oxygen and ozone.
| Cable Size (mm2) | Conductor | Cable OD | Copper weight (KG/KM) | Cable Weight (KG/KM) |
| structure (No./mm) | (mm) | |||
| 2 x 0,75 | 24 x 0,21 | 7,0 | 45 | 72 |
| 3 x 0,75 | 24 x 0,21 | 7,4 | 53 | 88 |
| 4 x 0,75 | 24 x 0,21 | 8,4 | 64 | 114 |
| 5 x 0,75 | 24 x 0,21 | 9,1 | 77 | 135 |
| 7 x 0,75 | 24 x 0,21 | 9,8 | 95 | 166 |
| 2 x 1 | 32 x 0,21 | 7,2 | 50 | 79 |
| 3 x 1 | 32 x 0,21 | 8,0 | 63 | 105 |
| 4 x 1 | 32 x 0,21 | 8,7 | 79 | 129 |
| 5 x 1 | 32 x 0,21 | 9,4 | 90 | 150 |
| 7 x 1 | 32 x 0,21 | 10,1 | 113 | 189 |
