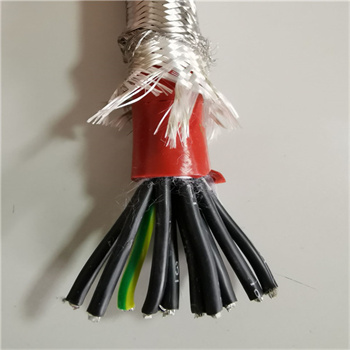

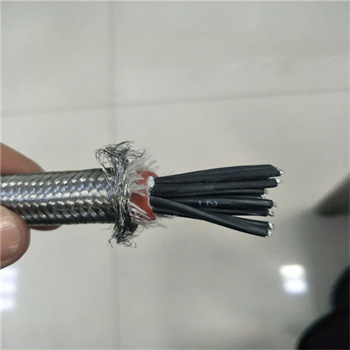

SIHF-C Multi wire multi core halogen-free copper braided screen silicone cable
 |
Product Name:
SIHF-C Multi wire multi core halogen-free copper braided screen silicone cable
Number :
 |
Product Description:
Standards:DIN VDE 0295, BS 6360, IEC 60228
Construction:
conductor:fine-stranded tinned or bare copper
insulation:silicone rubber
screen:tinned copper braiding;coverage is more than 85%
sheath:silicone rubber
Rated voltage: 300/500 V
Test voltage: 2000 V
Technical parameters
Temperature range: -60degreeto +180degree
Short time temp up to +220degree
Temperature limit at the conductor
in operation +180degree
Insulation resistance :min. 200 MΩ x km
Minimum bending radius: flexing 10 x cable Ø
5 x cable Ø
Coupling resistance:max. 250Ω/km
Radiation resistance: up to 20x106 cJ/kg (up to 20 Mrad)
Feature
Resistant to High molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lye and salt dissolution,
oxidation substances, tropical influences and weather, lake water, oxygen and UV Halogen-free
| Cable Size (mm2) | Conductor | Cable OD | Copper weight (KG/KM) | Cable Weight (KG/KM) |
| structure (No./mm) | (mm) | |||
| 2 x 0,75 | 24 x 0,21 | 7,0 | 45 | 72 |
| 3 x 0,75 | 24 x 0,21 | 7,4 | 53 | 88 |
| 4 x 0,75 | 24 x 0,21 | 8,4 | 64 | 114 |
| 5 x 0,75 | 24 x 0,21 | 9,1 | 77 | 135 |
| 7 x 0,75 | 24 x 0,21 | 9,8 | 95 | 166 |
| 2 x 1 | 32 x 0,21 | 7,2 | 50 | 79 |
| 3 x 1 | 32 x 0,21 | 8,0 | 63 | 105 |
| 4 x 1 | 32 x 0,21 | 8,7 | 79 | 129 |
| 5 x 1 | 32 x 0,21 | 9,4 | 90 | 150 |
| 7 x 1 | 32 x 0,21 | 10,1 | 113 | 189 |
