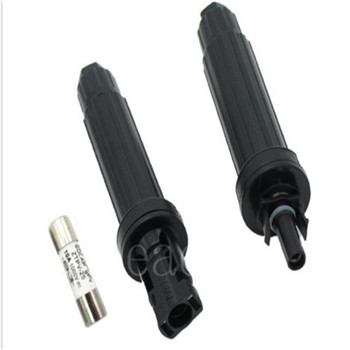

Solar MC3 pv connector TUV certification

Product Name:

Solar MC3 pv connector TUV certification

Number :

Product Description:

Technical Data

Rated Current 30A(2.5-6mm2),

Rated Voltage 1000VDC/600VDC

Test Voltage 6000V(50Hz,1min)

Overvoltage Type/Pollution Degree CAT III /2

Contact Resistance Of Plug Connector ImΩ

Contact Material Copper, Tin-plated

Insulation Material PPO

Degree Of Protection IP2X/IP67

Safety Class II

Suitable Cable OD 4.5-8.5(2.5-6.0mm2)

Insertion Force/Withdrawal Force ≤ 50N/≥ 50N

Connecting System Crimp connection

Temperature Range -40 °C ~ +125°C
