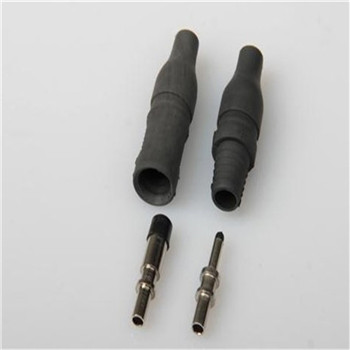

MC3 connector Male and Female branches
 |
Product Name:
MC3 connector Male and Female branches
Number :
 |
Product Description:
Working current: 20A (4mm2), 30A (6mm2)
Withstanding Voltage: DC1000V
Contact resistance: <= 0.5mΩ
Insulation resistance:> 500MΩ
Suitable for single-core cable cross-section: 1.5mm2--6mm2
Cable diameter range: Φ5mm ~ Φ 7mm
Ambient temperature: -40 ~ + 105
Protection: IP67
Safety class: 2
Insulation material: PPO, black
Contacts: copper cn, nickel sn
Flammability rating: UL94-VO
Terminal connection: Crimp
Withstanding Voltage: DC1000V
Contact resistance: <= 0.5mΩ
Insulation resistance:> 500MΩ
Suitable for single-core cable cross-section: 1.5mm2--6mm2
Cable diameter range: Φ5mm ~ Φ 7mm
Ambient temperature: -40 ~ + 105
Protection: IP67
Safety class: 2
Insulation material: PPO, black
Contacts: copper cn, nickel sn
Flammability rating: UL94-VO
Terminal connection: Crimp
