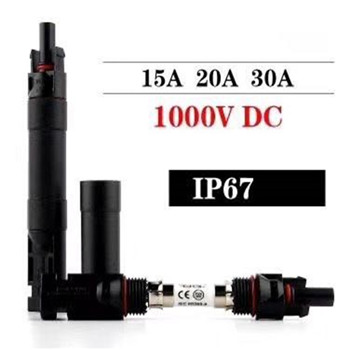

MC4 with fuse 20A 1000V 20A PPO Copper with tin plating
 |
Product Name:
MC4 with fuse 20A 1000V 20A PPO Copper with tin plating
Number :
 |
Product Description:
Rating current: 20A
Connector material: PPO
Contact material:Tinned copper
Pin dimension: 4.0mm
Contact resistance:Less than 0.5 m ohm
Degree of protection IP:IP67
Pollution degree:2
Protection class:Class II
Temperature range:-40 ~ + 90 centigrade
Product:Solar Fuse Connector
Auto-lock enables the connection more easy and reliable.
Quick to connect.
Water proof and prevent dust.
Long life.
Insulation material: PPO
Rated voltage: TUV 1000 DC/ 600V dc
Test voltage: 6kV(50Hz,1Min)
Contact material: copper, tin plated
Contact resistance: less than 0.5 m ohm
Plug force: less than 50N
Withdrawal force: more than 50N
Ambient temperature range: -40 ~ + 90?
Fuse: 20A
