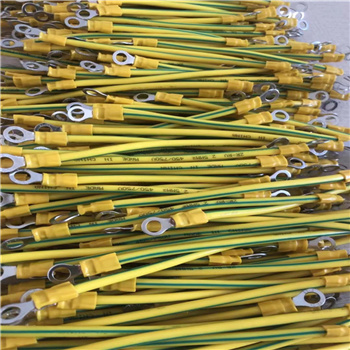

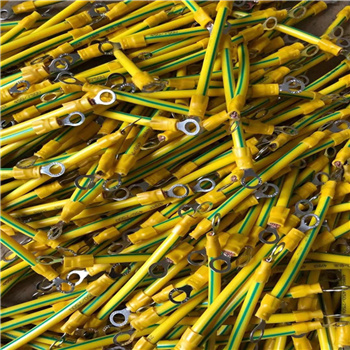

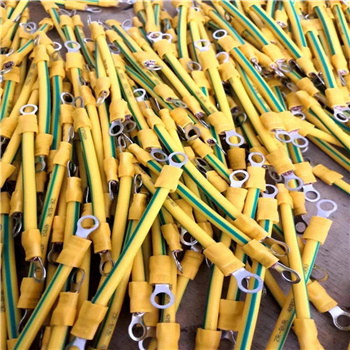

100mm length 2.5mm2 DC earthing jumper wire with both end crimped lug with 6mm hole

Product Name:

100mm length 2.5mm2 DC earthing jumper wire with both end crimped lug with 6mm hole

Number :

Product Description:

Suitable for AC and DC power supplies on telecom equipment and power applications where flexibility is required.

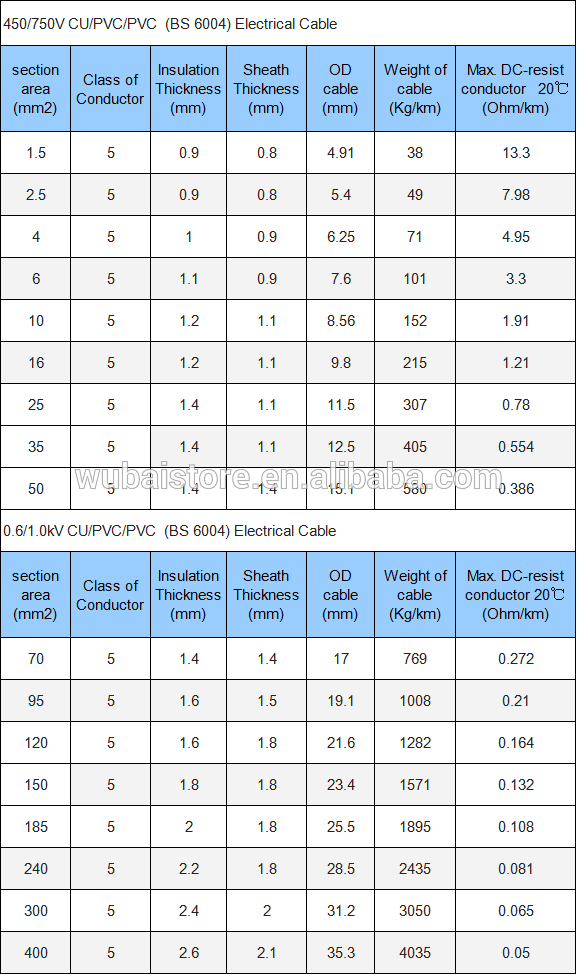

Standards:

100mm length 2.5mm2 DC earthing jumper with both end crimped lug with 6mm hole

BS6004, IEC60227

Rated Voltage:

1.5 mm2 to 35mm2: 450/750V

50 mm2 and above: 600/1000V

Conductor:

Class 5 flexible copper conductor to BS EN 60228 (previously BS 6360)

Insulation Material:

PVC (Polyvinyl Chloride) Type TI1 according to BS 7655

Insulation Colour:

brown, blue, red, and other colours.

Sheath Material:

PVC (Polyvinyl Chloride) Type 6 according to BS 7655

Sheath Colour:

brown, blue, red, and other colours.

Temperature Rating

-15°C to +70°C

Minimum Bending Radius

1.5 to 50mm²: 3*overall diameter

Above 70mm²: 4*overall diameter
