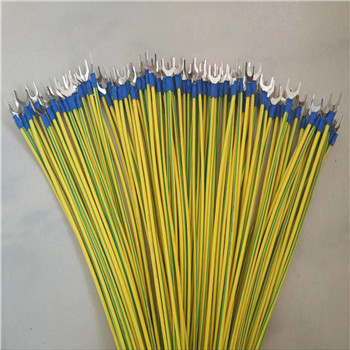

6mm2 green yellow earth wire with one end crimped lug with 5mm hole
 |
Product Name:
6mm2 green yellow earth wire with one end crimped lug with 5mm hole
Number :
 |
Product Description:
Application:
Suitable for AC and DC power supplies on telecom equipment and power applications where flexibility is required.
Standards:
BS6004, IEC60227
Rated Voltage:
1.5 mm2 to 35mm2: 450/750V
50 mm2 and above: 600/1000V
Conductor:
Class 5 flexible copper conductor to BS EN 60228 (previously BS 6360)
Insulation Material:
PVC (Polyvinyl Chloride) Type TI1 according to BS 7655
Insulation Colour:
brown, blue, red, and other colours.
Sheath Material:
PVC (Polyvinyl Chloride) Type 6 according to BS 7655
Sheath Colour:
brown, blue, red, and other colours.
Temperature Rating
-15°C to +70°C
Minimum Bending Radius
1.5 to 50mm²: 3*overall diameter
Above 70mm²: 4*overall diameter
green yellow earth wire with one end crimped lug with 5mm hole
|
Nominal
section
(mm2)
|
Number/diameter
of core
(mm)
|
Insulation
thickness
(mm)
|
Maximum outer
diameter
(mm)
|
Reference
Weight
(km/kg)
|
Conductor
resistance at
20°C≤
(Ω/km)
|
| 0.5 | 1/0.80 | 0.6 | 2.4 | 8.44 | 36 |
| 0.75 | 1/0.97 | 0.6 | 2.6 | 11.02 | 24.5 |
| 1 | 1/1.13 | 0.6 | 2.8 | 13.85 | 18.1 |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 20.2 | 12.1 |
| 1.5 | 7/0.52 | 0.7 | 3.4 | 21.62 | 12.1 |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 31.9 | 7.41 |
| 2.5 | 7/0.68 | 0.8 | 4.2 | 34.89 | 7.41 |
| 4 | 1/2.25 | 0.8 | 4.4 | 46.95 | 4.61 |
| 4 | 7/0.85 | 0.8 | 4.8 | 50.2 | 4.61 |
| 6 | 1/2.76 | 0.8 | 4.9 | 66.8 | 3.08 |
| 6 | 7/1.04 | 0.8 | 5.4 | 71.04 | 3.08 |
