Product Name:

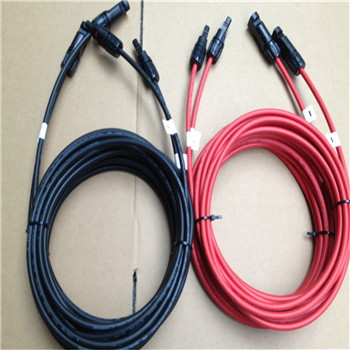

Solar Extension cord solar Panel connector 20 Feet
Number :
 |
Contact Material:Copper,Tin plated
Connector:Solar Panel Connector
Wire Color:Black/Red
Wire Gauge:2.5mm2, 4mm2, 6mm2, 10mm2 (14/12/10/8AWG)
Rated Current:30A(2.5mm2),50A(4mm2,6mm2)
Rated Voltage:1000V/1500V DC
Test Voltage:8kV(50Hz,1min)
Wire Length:1m(3ft),2m(6ft),3m(10ft), 6m( 20ft), 10m(30ft), Can be customized
Waterproof protection:IP68
Application:Suitable for Generator, Solar Panel system.
Package:Bulk Packing, we accept custom packing
Features:
* Protecting against short circuits and ground leakages. Suitable for use inside and connected to insulated equipment.
* High current carrying capacity.
* Resistance against UV, water, ozone, fluids, oil, salt and general weathering.
* Hard plastic connectors at each end. Suitable for using in solar panels, DC circuits, inverter wiring.
* Engineered for long life and outdoor applications. Good abrasion resistance,excellent softness and stripping performance.
