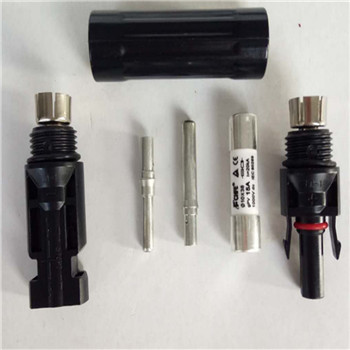

Solar PV Fuse Holder In-line Fuse Connector 15 / 20A 1000V

Product Name:

Solar PV Fuse Holder In-line Fuse Connector 15 / 20A 1000V

Number :

Product Description:

Rating current: 20A

Connector material: PPO

Contact material:Tinned copper

Pin dimension: 4.0mm

Contact resistance:Less than 0.5 m ohm

Degree of protection IP:IP67

Pollution degree:2

Protection class:Class II

Temperature range:-40 ~ + 90 centigrade

Product:Solar Fuse Connector

Auto-lock enables the connection more easy and reliable.

Quick to connect.

Water proof and prevent dust.

Long life.

Insulation material: PPO

Rated voltage: TUV 1000 DC/ 600V dc

Test voltage: 6kV(50Hz,1Min)

Contact material: copper, tin plated

Contact resistance: less than 0.5 m ohm

Plug force: less than 50N

Withdrawal force: more than 50N

Ambient temperature range: -40 ~ + 90?

Fuse: 20A
