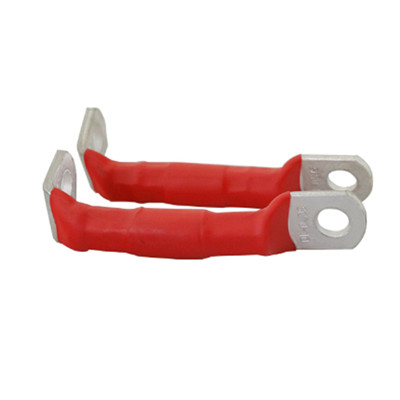

Extra Flexible Tinned Copper PVC Battery Cable
 |
Product Name:
Extra Flexible Tinned Copper PVC Battery Cable
Number :
 |
Product Description:
Extra Flexible Tinned Copper PVC Battery Cable
1) Rated Temperature: -40℃ to 105℃
2) Conductor Material: Bare Copper
3) AWG Size: Customized
4) Cable Length: Customized
5) Battery Cable End: Cable lug, top post, battery terminal or customized.
6) Standard: UL758
7) Insulation:PVC
8) Insulation Color: Black, Red, Yellow etc.
9) Feature: Acid-proof, long lifespan, flexible,Anti-aging, high or low temperature resistance, high voltage resistance
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
6 |
37/.0260 |
0.06 |
0.305 |
137 |
SAE J-1127 |
|
4 |
61/.0250 |
0.065 |
0.35 |
168 |
SAE J-1127 |
|
2 |
133/.0218 |
0.065 |
0.44 |
258 |
SAE J-1127 |
|
1 |
133/.0243 |
0.065 |
0.48 |
322 |
SAE J-1127 |
|
1/0 |
133/.0275 |
0.065 |
0.525 |
431 |
SAE J-1127 |
|
2/0 |
133/.0309 |
0.065 |
0.575 |
497 |
SAE J-1127 |
|
3/0 |
361/.0210 |
0.078 |
0.661 |
603 |
SAE J-1127 |
|
4/0 |
361/.0239 |
0.078 |
0.726 |
779 |
SAE J-1127 |
