Product Name:
SGX Automotive Battery Cable/Primary Wire
Number :
 |
Construction:
Conductor: Bare copper
Insulation: Cross-Linked Polyethylene (XLPE)

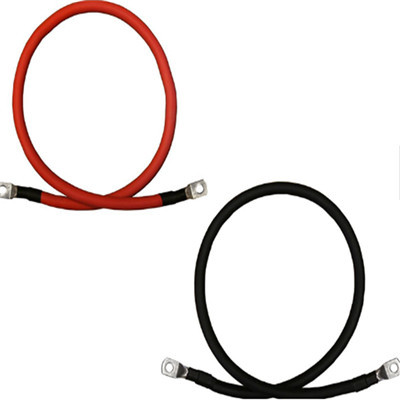

Options: Available in stranded battery circuit colors of black and red with optional custom printing available
Features:
Can be used for automotive starters or battery grounds where resistance to abrasion, heat and aging is needed.
Meets the requirements of SAE J-1127
SGX wire has a recommended temperature range of -40°C to +125°C
|
SGX Automotive Battery Cable/Primary Wire |
|
|
|||||
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
6 |
133/0.0137 |
0.06 |
0.305 |
107 |
SAE J-1127 |
|
4 |
133/0.0170 |
0.065 |
0.375 |
153 |
SAE J-1127 |
|
2 |
133/0.0220 |
0.065 |
0.438 |
248 |
SAE J-1127 |
|
1 |
259/0.0177 |
0.065 |
0.48 |
308 |
SAE J1127 |
|
1/0 |
1026/0.010 |
0.065 |
0.525 |
383 |
SAE J-1127 |
|
2/0 |
1254/30 |
0.065 |
0.575 |
470 |
SAE J-1127 |
|
3/0 |
1615/30 |
0.078 |
0.654 |
589 |
SAE J-1127 |
|
4/0 |
2052/.0100 |
0.078 |
0.706 |
766 |
SAE J-1127 |
Noted:
Primary auto wire is designed for many different automotive environments and to endure the harsh conditions
of a variety of automotive applications. Allied's automotive wiring ranges from commercial to recreational vehicles.
Our Primary Wire is top of the line and has excellent features.
All of primary automotive wire1 meets SAE J-1128, Ford and Chrysler specifications. Products in our inventory include,
SXL, GXL, TXL, GPT, TWP and HDT.
While some primary wire is rated for general use, such as circuit wiring, others are used in more specific scenarios,
such as GXL which is mostly used in trucks and trailers.
SXL wire is used in applications that have a need for high heat resistance and high temperature performance.
It is therefore rated up to 125°C whereas GPT and HDT are rated to only 80°C.
We also boast a range of sizes for certain types of automotive primary wire that include 22 AWG to 4/0 AWG.
