Product Name:

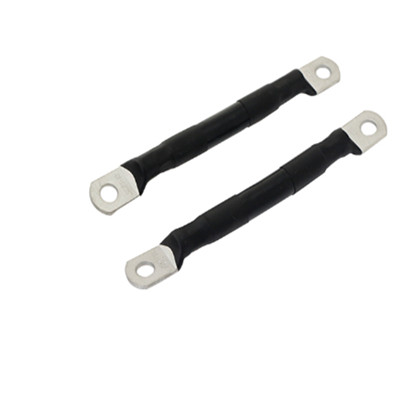

SGT Automotive Battery Cable/Automotive Starter, Ground or Battery Cable
Number :
 |
Construction:
Conductor: Bare copper
Insulation: Polyvinylchloride (PVC)
Color & Print Options: Available in standard battery circuit colors of black and red with optional custom printing available.
Stranding Options: SGT Cable is available with higher stranding.
Applications:
Type SGT Battery Cable may be used in starter or battery ground circuits in accordance with SAE J-1127.
Recommended temperature range is -40°C to +105°C.
Manufactured to meet Ford (M1L-56A) and Chrysler (MS-3450)
|
SGT Automotive Battery Cable |
|||||
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
6 |
37/.0260 |
0.06 |
0.305 |
137 |
SAE J-1127 |
|
4 |
61/.0250 |
0.065 |
0.35 |
168 |
SAE J-1127 |
|
2 |
133/.0218 |
0.065 |
0.44 |
258 |
SAE J-1127 |
|
1 |
133/.0243 |
0.065 |
0.48 |
322 |
SAE J-1127 |
|
1/0 |
133/.0275 |
0.065 |
0.525 |
431 |
SAE J-1127 |
|
2/0 |
133/.0309 |
0.065 |
0.575 |
497 |
SAE J-1127 |
|
3/0 |
361/.0210 |
0.078 |
0.661 |
603 |
SAE J-1127 |
|
4/0 |
361/.0239 |
0.078 |
0.726 |
779 |
SAE J-1127 |
Noted:
Primary auto wire is designed for many different automotive environments and to endure the harsh
conditions of a variety of automotive applications. Allied's automotive wiring ranges from commercial to
recreational vehicles.
Our Primary Wire is top of the line and has excellent features.
All of primary automotive wire1 meets SAE J-1128, Ford and Chrysler specifications. Products in our inventory
include, SXL, GXL, TXL, GPT, TWP and HDT.
While some primary wire is rated for general use, such as circuit wiring, others are used in more specific scenarios,
such as GXL which is mostly used in trucks and trailers.
SXL wire is used in applications that have a need for high heat resistance and high temperature performance.
It is therefore rated up to 125°C whereas GPT and HDT are rated to only 80°C.
We also boast a range of sizes for certain types of automotive primary wire that include 22 AWG to 4/0 AWG.
