Product Name:
SGT and STX/SGX Automotive Battery Cable
Number :
 |
We offer battery cables SGT and STX/SGX. All auto battery cable options meet SAE J-1127, Ford and Chrysler
specifications.
Battery wire also comes in a variety of AWG sizes.

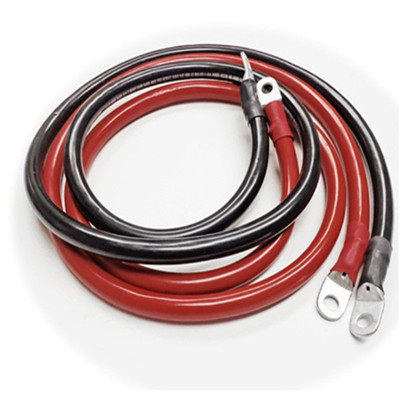

Our battery cable features bare copper conductors and is available in standard battery circuit black and red.
SGT cable can be used in starter or battery ground circuits.
It comes with Polyvinylchloride (PVC) insulation and can withstand temperatures up to 105ºC.
Flex SGT wire is available with higher stranding.
|
SGT Automotive Battery Cable |
|||||
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
6 |
37/.0260 |
0.06 |
0.305 |
137 |
SAE J-1127 |
|
4 |
61/.0250 |
0.065 |
0.35 |
168 |
SAE J-1127 |
|
2 |
133/.0218 |
0.065 |
0.44 |
258 |
SAE J-1127 |
|
1 |
133/.0243 |
0.065 |
0.48 |
322 |
SAE J-1127 |
|
1/0 |
133/.0275 |
0.065 |
0.525 |
431 |
SAE J-1127 |
|
2/0 |
133/.0309 |
0.065 |
0.575 |
497 |
SAE J-1127 |
|
3/0 |
361/.0210 |
0.078 |
0.661 |
603 |
SAE J-1127 |
|
4/0 |
361/.0239 |
0.078 |
0.726 |
779 |
SAE J-1127 |
STX wire or SGX wire can be used for automotive starters or battery grounds where resistance to abrasion,
heat and aging is needed.
It has Cross-Linked Polyethylene (XLPE) insulation and can withstand temperatures up to 125ºC.
|
SGX Automotive Battery Cable/Primary Wire |
|||||
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
6 |
133/0.0137 |
0.06 |
0.305 |
107 |
SAE J-1127 |
|
4 |
133/0.0170 |
0.065 |
0.375 |
153 |
SAE J-1127 |
|
2 |
133/0.0220 |
0.065 |
0.438 |
248 |
SAE J-1127 |
|
1 |
259/0.0177 |
0.065 |
0.48 |
308 |
SAE J1127 |
|
1/0 |
1026/0.010 |
0.065 |
0.525 |
383 |
SAE J-1127 |
|
2/0 |
1254/30 |
0.065 |
0.575 |
470 |
SAE J-1127 |
|
3/0 |
1615/30 |
0.078 |
0.654 |
589 |
SAE J-1127 |
