Product Name:

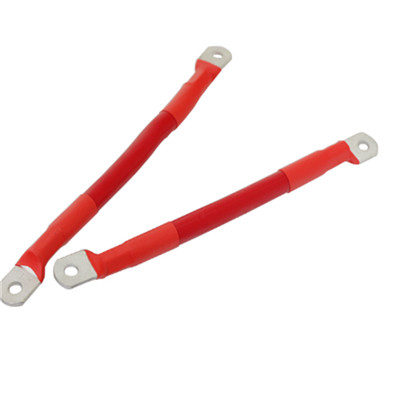

2/0 Sgt SAE J-1127 PVC Battery Cable for Automotive
Number :
 |
All of primary automotive wire1 meets SAE J-1128, Ford and Chrysler specifications. Products in our inventory include, SXL, GXL, TXL, GPT, TWP and HDT.
While some primary wire is rated for general use, such as circuit wiring, others are used in more specific scenarios,
such as GXL which is mostly used in trucks and trailers.
SXL wire is used in applications that have a need for high heat resistance and high temperature performance.
It is therefore rated up to 125°C whereas GPT and HDT are rated to only 80°C.
We also boast a range of sizes for certain types of automotive primary wire that include 22 AWG to 4/0 AWG.
GPT Automotive Primary Wire
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
22 |
7/30 |
0.023 |
0.076 |
3.9 |
SAE J-1128 |
|
20 |
7/28 |
0.023 |
0.084 |
6.2 |
SAE J-1128 |
|
18 |
16/30 |
0.023 |
0.093 |
8.3 |
SAE J-1128 |
|
16 |
19/29 |
0.023 |
0.102 |
11.5 |
SAE J-1128 |
|
14 |
19/27 |
0.023 |
0.118 |
16.8 |
SAE J-1128 |
|
12 |
19/25 |
0.026 |
0.141 |
25.2 |
SAE J-1128 |
|
10 |
19/23 |
0.031 |
0.178 |
40 |
SAE J-1128 |
|
8 |
19/21 |
0.037 |
0.218 |
63 |
SAE J-1128 |
|
GXL Automotive Primary Wire/Automotive Primary Wire |
|||||
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
20 |
7/28 |
0.023 |
0.084 |
6 |
SAE J-1128 |
|
18 |
16/30 |
0.023 |
0.094 |
8 |
SAE J-1128 |
|
16 |
19/29 |
0.023 |
0.104 |
11.5 |
SAE J-1128 |
|
14 |
19/27 |
0.023 |
0.116 |
16 |
SAE J-1128 |
|
12 |
19/25 |
0.026 |
0.141 |
24 |
SAE J-1128 |
|
10 |
19/23 |
0.031 |
0.174 |
37 |
SAE J-1128 |
|
8 |
19/21 |
0.037 |
0.218 |
68 |
SAE J-1128 |
|
SGT Automotive Battery Cable |
|||||
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
6 |
37/.0260 |
0.06 |
0.305 |
137 |
SAE J-1127 |
|
4 |
61/.0250 |
0.065 |
0.35 |
168 |
SAE J-1127 |
|
2 |
133/.0218 |
0.065 |
0.44 |
258 |
SAE J-1127 |
|
1 |
133/.0243 |
0.065 |
0.48 |
322 |
SAE J-1127 |
|
1/0 |
133/.0275 |
0.065 |
0.525 |
431 |
SAE J-1127 |
|
2/0 |
133/.0309 |
0.065 |
0.575 |
497 |
SAE J-1127 |
|
3/0 |
361/.0210 |
0.078 |
0.661 |
603 |
SAE J-1127 |
|
4/0 |
361/.0239 |
0.078 |
0.726 |
779 |
SAE J-1127 |
|
SGX Automotive Battery Cable/Primary Wire |
|||||
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
6 |
133/0.0137 |
0.06 |
0.305 |
107 |
SAE J-1127 |
|
4 |
133/0.0170 |
0.065 |
0.375 |
153 |
SAE J-1127 |
|
2 |
133/0.0220 |
0.065 |
0.438 |
248 |
SAE J-1127 |
|
1 |
259/0.0177 |
0.065 |
0.48 |
308 |
SAE J1127 |
|
1/0 |
1026/0.010 |
0.065 |
0.525 |
383 |
SAE J-1127 |
|
2/0 |
1254/30 |
0.065 |
0.575 |
470 |
SAE J-1127 |
|
3/0 |
1615/30 |
0.078 |
0.654 |
589 |
SAE J-1127 |
|
4/0 |
2052/.0100 |
0.078 |
0.706 |
766 |
SAE J-1127 |
