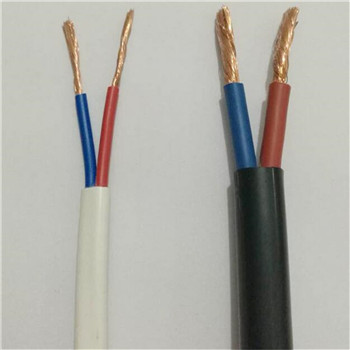

Double PVC 2cores 4 Cores Speaker Cable
 |
Product Name:
Double PVC 2cores 4 Cores Speaker Cable
Number :
 |
Product Description:
Specifications
1. Transparent PVC,
2. conductor: oxygen-free copper, Tinned copper , or CCA, CCS
3. Any guage, any color can be supplied
4. Standard thickness
5. Easy to strip and cut
6. Suitable for Audio Device, Speaker ,electrical equipment, power and lighting system
7. Packing:
a) Packing lengths: 100m/roll, 200m/roll, 305m/roll
b) Inner packing: plastic spool , paper drum , or wooden drum,
c) Outer packing: carton box
d) Other packing available according to customer
High Quality Double PVC 2cores 4 Cores Speaker Cable
|
model ( size) |
Specification Description |
Insulation Out Dia. |
Jacket/sheath (MaterialColour) |
| (mm) | |||
| 0.35mm2 | 2CX20/0.15mm | O. D: 2.0X4.0 | PVC/Transparent or any |
| 0.5mm2 | 2CX28/0.15mm | O. D: 2.2X. 4.4 | PVC/Transparent or any |
| 0.75mm2 | 2CX42/0.15mm | O. D: 2.4X4.8 | PVC/Transparent or any |
| 1.0mm2 | 2CX57/0.15mm | O. D: 3.0X6.0 | PVC/Transparent or any |
| 1.5 mm2 | 2CX85/0.15mm | O. D: 3.6X7.2 | PVC/Transparent or any |
| 2.5mm2 | 2CX7X20/0.15mm | O. D: 4.2X8.4 | PVC/Transparent or any |
| 4.0 mm2 | 2CX7X32/0.15mm | O. D: 5.0X10.0 | PVC/Transparent or any |
| 6.0mm2 | 2CX7X48/0.15mm | O. D: 5.5X11.0 | PVC/Transparent or any |
