Product Name:

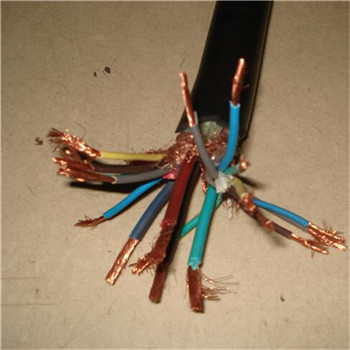

XLPE insulated PVC sheathed copper wire screened steel wire armored control cable
Number :
 |
Conductor: stranded bare copper
Cores: 2cores, 3cores, 3+1 cores, 3+2 cores, 4 cores, 5 cores, 5+1 cores;
PVC insulated, PVC jacket.
Other details:
1.Standard: ISO9001,CE, ROHS,SGS,CCC;
2.Application: General purpose indoor and outdoor, electrical tools, washing machines and vaccum cleaners etc.;
3.Construction: Flexible annealed copper conductor, PVC insulated and PVC sheathed;
4.Voltage: 300/500v;
5.Core color: Red, black, blue, white, green, yellow, brown;
6.Sheath color: Black, white, orange,grey .
Copper core XLPE insulated PVC sheathed copper wire screened steel wire armored control cable
|
Core number*nominal cross section of conductor |
Max diameter of conductor in a line |
insulator thickness |
Shielded wire diameter |
sheath thickness |
average overall diameter |
Min insulation resistance |
| *16×1 | 0.21 | 0.6 | 0.2 | 1.2 | 17.1 | 0.01 |
| 19×0.3 | 0.16 | 0.5 | 0.2 | 0.8 | 12.9 | 0.014 |
| 19×0.4 | 0.16 | 0.5 | 0.2 | 1 | 14.2 | 0.013 |
| *19×0.5 | 0.21 | 0.5 | 0.2 | 1.2 | 15.1 | 0.012 |
| *19×0.75 | 0.21 | 0.5 | 0.2 | 1.2 | 16.1 | 0.01 |
| *19×1 | 0.21 | 0.6 | 0.2 | 1.2 | 17.9 | 0.01 |
| 24×0.3 | 0.16 | 0.5 | 0.2 | 1 | 14.4 | 0.014 |
| 24×0.4 | 0.16 | 0.5 | 0.2 | 1 | 16.4 | 0.013 |
| *24×0.5 | 0.21 | 0.5 | 0.2 | 1.2 | 17.4 | 0.012 |
| *24×0.75 | 0.21 | 0.5 | 0.2 | 1.2 | 18.6 | 0.01 |
| *24×1 | 0.21 | 0.6 | 0.2 | 1.2 | 21 | 0.01 |
