Product Name:

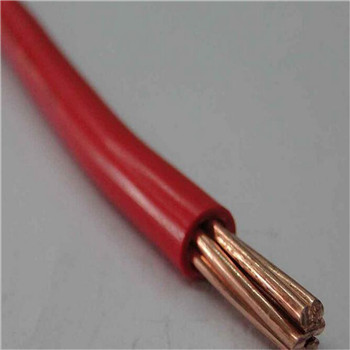

300/500V H05z-K Flexible Lsoh Electrical Wire
Number :
 |
solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire
to electrical appliances,suitable for use in conduit and for fixed,protected installation.The cable can be of flame
ratardance,fire resistance and other property.
Technical Information:
1.U0 /U:300/500V,450/750V
2.Standard Applied:IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3.Max.Operating Temperature:70°C,can be 90°C,105°C as per requirent
4.Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5.Insulation:PVC
6.Cores:Single core
7.Range of Nominal cross section:0.75~240sqmm
8.Jacket:Without Jacket
9.Color:Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12.Certification:ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
300/500V H05z-K Flexible Lsoh Electrical Wire
|
Nominal section (mm2) |
Number/diameter of core (mm) |
Insulation thickness (mm) |
Maximum outer diameter (mm) |
Reference Weight (km/kg) |
Conductor resistance at 20°C≤ (Ω/km) |
| 0.5 | 1/0.80 | 0.6 | 2.4 | 8.44 | 36 |
| 0.75 | 1/0.97 | 0.6 | 2.6 | 11.02 | 24.5 |
| 1 | 1/1.13 | 0.6 | 2.8 | 13.85 | 18.1 |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 20.2 | 12.1 |
| 1.5 | 7/0.52 | 0.7 | 3.4 | 21.62 | 12.1 |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 31.9 | 7.41 |
| 2.5 | 7/0.68 | 0.8 | 4.2 | 34.89 | 7.41 |
| 4 | 1/2.25 | 0.8 | 4.4 | 46.95 | 4.61 |
| 4 | 7/0.85 | 0.8 | 4.8 | 50.2 | 4.61 |
| 6 | 1/2.76 | 0.8 | 4.9 | 66.8 | 3.08 |
| 6 | 7/1.04 | 0.8 | 5.4 | 71.04 | 3.08 |
| 10 | 1/3.58 | 1 | 6.4 | 111.62 | 1.83 |
| 10 | 7/1.35 | 1 | 6.8 | 118.61 | 1.83 |
| 16 | 7/1.70 | 1 | 8 | 178.68 | 1.15 |
| 25 | 7/2.14 | 1.2 | 9.8 | 280.51 | 0.727 |
| 35 | 7/2.52 | 1.2 | 11 | 378.97 | 0.524 |
