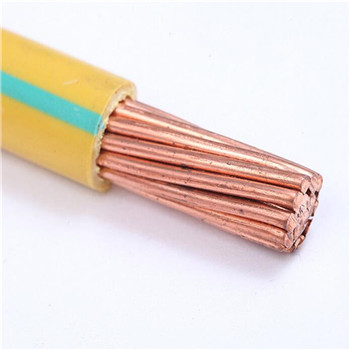

Electrical yellow green earthing ground cable

Product Name:

Electrical yellow green earthing ground cable

Number :

Product Description:

SPECIFICATION

Volvatage Rating:	300/500v, 450/750v
Insulation:	PVC
Jacket:	PVC
Color:	Green and Yellow
Protect:	UV Resistance

(5) Low voltage
(6) Flexible or ordinary
(7) A/C voltage: 450/750v or below
300/500v or below
(8) Sinle core or multi cores
(9) Insulation colour: Black, Brown, Yellow, Blue, Red,Green/Yellow, Grey, Orange, White is also available.
(10) Maximum conductor temperature:70°C
Maximum conductor temperature during short Circuit:160°c
Cable 20°C water into 1h,infliction 2500V volage 5min,insulated to do not roke throuth.
(11) Customrized Type is acceptable.

STANDARDS:
BS EN 50525-3-11 (HD21.14), BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24.C

Electrical yellow green earthing ground cable

Nominal Area	Conductor Construction	Insulation Thickness	Approximate Overall Diameter
mm2	mm	mm	mm
1.5	7/0.52	0.7	3.0
2.5	19/0.41	0.8	3.7
4	19/0.52	0.8	4.2
6	19/0.64	0.8	4.8
10	49/0.52	1.0	6.7
16	49/0.64	1.0	7.8
25	98/0.58	1.2	10.1
35	133/0.58	1.2	11.1
50	133/0.68	1.4	13.0
70	189/0.68	1.4	15.4
95	259/0.68	1.6	17.5
120	361/0.64	1.8	19.6
150	432/0.64	1.8	22.1
185	513/0.68	2.0	24.9
