Electric TPS cable Australia
 |
Product Name:

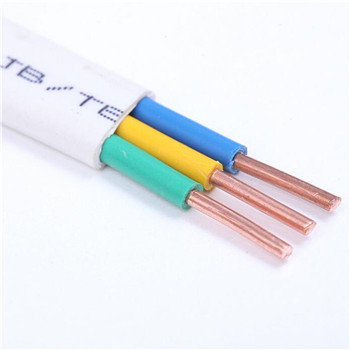

Electric TPS cable Australia
Number :
 |
Product Description:
1. Application:
general wiring,unenclosed,enclosed in conduit,burieddirect or in underground ducts for domestic,
commercial and industrialinstallations where no subject to mechanical damage.
commercial and industrialinstallations where no subject to mechanical damage.
Suitable for two way orintermediate switching applications.
2. Structure:
a. Standard: AN/NZS5000.2:2006
b. Voltage: 450/750V
c. Conductor: Annealed Copper
d. Insulation: PVC 90
e. Sheath: PVC 90
f. Max Operating Temp.75 Continuous
AS/NZS5000 2.5mm2 2C+E Flat TPS Cable
| Size | Conductor Strands |
Insulation Thickness
|
| 2x1.5mm2 | 7/0.52mm |
0.6mm
|
| 2x2.5mm2 | 7/0.68mm |
0.7mm
|
| 2x1.5mm2+1.5mm2 | 7/0.52mm |
0.6mm
|
| 2x2.5mm2+2.5mm2 | 7/0.68mm |
0.7mm
|
| 2x4mm2+2.5mm2 | 7/0.85mm+7/0.68mm |
0.8mm
|
| 2x6mm2+2.5mm2 | 7/1.04mm+7/0.68mm |
0.8mm |
