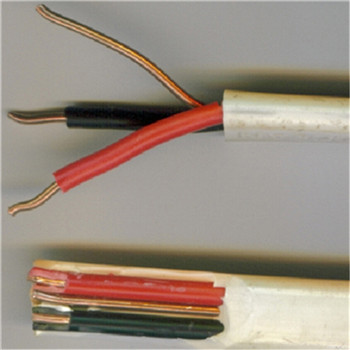

Electric wire twin and earth cable
 |
Product Name:
Electric wire twin and earth cable
Number :
 |
Product Description:
Application
general wiring,unenclosed,enclosed in conduit,burieddirect or in underground ducts for domestic,
commercial and industrialinstallations where no subject to mechanical damage. Suitable for
two way orintermediate switching applications.
Specification SANS 1507/2002
|
Voltage Rating
|
300/500 V
|
|
|
Temperature Range
|
-10°C to 70°C
|
|
|
Sheath colours
|
Black and white
|
|
|
Core colours
|
2 core - black and red
|
|
|
3 core - blue, red and yellow
|
||
|
4 core - black, blue, red and yellow
|
Technical Information
|
CABLE SIZE
|
CONDUCTOR
TYPE |
NOMINAL
OVERALL DIAMETER |
CURRENT
RATING NOTE 1 |
VOLT DROP
NOTE 1 |
APPROX. CABLE
WEIGHT MASS PER 100M COIL |
|
|
(mm2)
|
(MAIN)
|
(EARTH)
|
(mm)
|
(A)
|
(MV/A/M)
|
(kg)
|
|
1.0
|
1/1.5
|
1/1.5
|
7.9 x 4.3
|
15
|
44
|
6.76
|
|
1.5
|
1/1.38
|
1/1.15
|
8.8 x 4.8
|
19
|
29
|
8.33
|
|
2.5
|
1/1.78
|
1/1.38
|
10.4 x 5.6
|
27
|
18
|
11.7
|
|
4.0
|
7/0.86
|
1/1.38
|
12.2 x 6.2
|
36
|
11
|
18.3
|
|
6.0
|
7/1.04
|
1/1.78
|
13.7 x 7.2
|
46
|
7.3
|
23.4
|
|
10.0
|
7/1.38
|
7/0.86
|
17.2 x 8.6
|
63
|
4.4
|
37.1
|
|
16.0
|
7/1.72
|
7/1.04
|
20.0 x 9.8
|
85
|
2.8
|
52.0
|
