Product Name:

SC/KC/KX/EX compensation cable

Number :

Product Description:

Application:
Thermocouple Wire that is used in a thermocouple from the point of sensing to the point of cold junction compensation (cjc end)

where the signal is measured. A thermocouple is a sensor for measuring temperature, that consists of two dissimilar metals
that are joined together at the sensing end. Different thermocouple types (e. G. J, K, T, E, etc) use different mixtures of
metals in the wire. At the cjc end, the millivolt value provided by the thermocouple represents the difference in temperature of the
sensing end as compared to the cjc end (also called the reference end).

thermocouple compensation cable
Grade:	Extension Grade or Thermocuple Grade
temperature range, deg. c	-50 to +400
type of coductor:	K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors:	1,2,3,4,6
Conductor type	Strand or Solid
material of insulation:	fiberglass, telfon, PTFE, PVC, silicone,so on
material of jacket:	fiberglass, telfon, PTFE, PVC, silicone,so on
shielding material:	Stainless Steel Braid and Tinned Copper wire braid

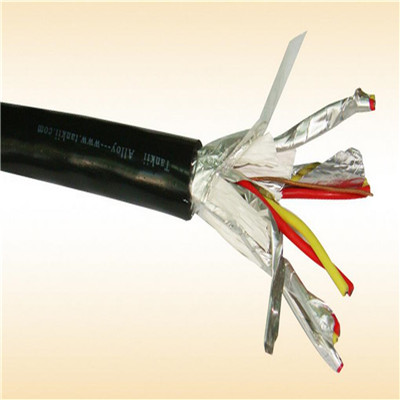

SC/KC/KX/EX compensation cable with ptfe insulation material

Thermocouple Extension Wire or Cable
Main Technical Requirement
Type	Compensational wire core		Insulation color of compensational wire		Thermocouple type
Type	plus	minus	plus	minus	Thermocouple type
SC or RC	Cu	0.6 Cu-Ni	red	green	(PtRh10-PT) or R (PtRh13-PT)
KCA	Fe	Cu-Ni	red	blue	K (NiCr-NiSi)
KCB	Cu	Cu-Ni	red	blue
KX	Ni-Cr 10	Ni-Si	red	black
EX	Ni-Cr 10	Cu-Ni	red	brown	E (NiCr-NiSi)
JX	Fe	Cu-Ni	red	violet	J (Fe-CuNi)
TX	Cu	Cu-Ni	red	white	T (Cu-CuNi)
NC	Fe	Cu-Ni	red	grey	N (NiCrSi-NiSi)
NX	Ni-Cr 14 Si	Ni-Si	red	grey	N (NiCrSi-NiSi)
