Product Name:
Stainless steel braided Thermocouple type K extension wire
Number :
 |
|
thermocouple compensation cable |
|
|
Grade: |
Extension Grade or Thermocuple Grade |
|
temperature range, deg. c |
-50 to +400 |
|
type of coductor: |
K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX |
|
number of conductors: |
1,2,3,4,6 |
|
Conductor type |
Strand or Solid |
|
material of insulation: |
fiberglass, telfon, PTFE, PVC, silicone,so on |
|
material of jacket: |
fiberglass, telfon, PTFE, PVC, silicone,so on |
The thermocouple cables can also be termed as instrumentation cables, since they are used for process temperature
measurement.
The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are
used in processes to sense temperature and is connected to the pyrometers for indication and control.
The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple
compensating cables.
The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties
as that of the thermocouple used for sensing the temperature.

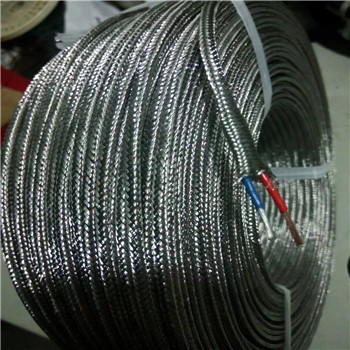

Stainless steel braided Thermocouple type K extension wire
| Thermocouple Extension Wire or Cable | |||||
| Main Technical Requirement | |||||
| Type |
Compensational wire core |
Insulation color of compensational wire |
Thermocouple type | ||
| plus | minus | plus | minus | ||
| SC or RC | Cu | 0.6 Cu-Ni | red | green | (PtRh10-PT) or R (PtRh13-PT) |
| KCA | Fe | Cu-Ni | red | blue | K (NiCr-NiSi) |
| KCB | Cu | Cu-Ni | red | blue | |
| KX | Ni-Cr 10 | Ni-Si | red | black | |
| EX | Ni-Cr 10 | Cu-Ni | red | brown | E (NiCr-NiSi) |
| JX | Fe | Cu-Ni | red | violet | J (Fe-CuNi) |
| TX | Cu | Cu-Ni | red | white | T (Cu-CuNi) |
| NC | Fe | Cu-Ni | red | grey | N (NiCrSi-NiSi) |
