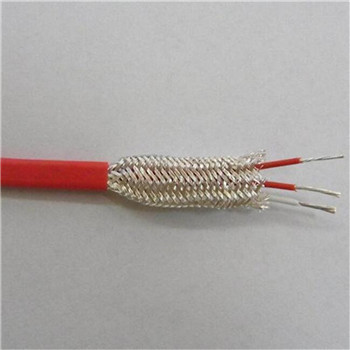

Non Armoured Multipair Thermocouple Extension and Compensation Cable

Product Name:

Non Armoured Multipair Thermocouple Extension and Compensation Cable

Number :

Product Description:

Technical Parameters:

• Rated temperature: -65 ℃ ~ 350 ℃

• Rated voltage: 300V / 500V

• insulating materials: PVC, fluorine plastic, silicone rubber, glass fiber

• shielding materials: silver wire, tinned copper wire

• Uses: used in a variety of temperature measurement devices, used in petroleum, chemical,
metallurgy, electric power and other sectors

Non Armoured Multipair Thermocouple Extension and Compensation Cable

Chromel/Alumel Fiberglass Thermocouple Wire Type K
AWG	Nominal Conductor Diameter mm	Nominal Thickness mm
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.
14	1.63	0.18	0.25	2.5 x 4.6
16	1.29	0.18	0.25	2.2 x 3.8
16S	1.47	0.18	0.25	2.4 x 4.3
18	1.02	0.18	0.25	1.8 x 3.2
20	0.81	0.15	0.15	1.4 x 2.5
20S	0.97	0.15	0.15	1.5 x 2.7
22	0.64	0.15	0.15	1.2 x 2.2
24	0.51	0.15	0.15	1.0 x 1.7
24S	0.61	0.15	0.15	1.2 x 2.1
26	0.41	0.11	0.15	0.9 x 1.5
28	0.32	0.11	0.15	0.8 x 1.4
30	0.25	0.11	0.15	0.8 x 1.2
