Product Name:

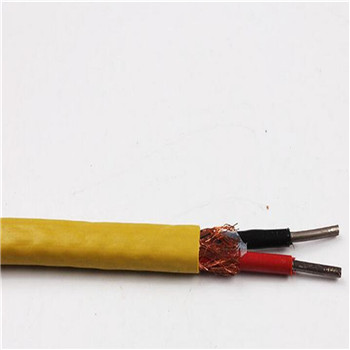

Instrumentation Cable, Thermocouple Cable, Tray Cable

Number :

Product Description:

Technical Parameters:

• Rated temperature: -65 ℃ ~ 350 ℃

• Rated voltage: 300V / 500V

• insulating materials: PVC, fluorine plastic, silicone rubber, glass fiber

• shielding materials: silver wire, tinned copper wire

• Uses: used in a variety of temperature measurement devices, used in petroleum, chemical, metallurgy,
electric power and other sectors

Instrumentation Cable, Thermocouple Cable, Tray Cable

thermocouple compensation cable
Grade:	Extension Grade or Thermocuple Grade
temperature range, deg. c	-50 to +400
type of coductor:	K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors:	1,2,3,4,6
Conductor type	Strand or Solid
material of insulation:	fiberglass, telfon, PTFE, PVC, silicone,so on
material of jacket:	fiberglass, telfon, PTFE, PVC, silicone,so on
shielding material:	Stainless Steel Braid and Tinned Copper wire braid

Fiberglass Type J Thermocouple Wire
Iron/Constantan Fiberglass Thermocouple Wire Type J
AWG	Nominal Conductor Diameter mm	Nominal Thickness mm
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.
14	1.63	0.18	0.25	2.5 x 4.6
16	1.29	0.18	0.25	2.2 x 3.8
16S*	1.47	0.18	0.25	2.4 x 4.3
18	1.02	0.18	0.25	1.8 x 3.2
20	0.81	0.15	0.15	1.4 x 2.5
20S*	0.97	0.15	0.15	1.5 x 2.7
22	0.64	0.15	0.15	1.2 x 2.2
24	0.51	0.15	0.15	1.0 x 1.7
24S*	0.61	0.15	0.15	1.2 x 2.1
26	0.41	0.11	0.15	0.9 x 1.5
28	0.32	0.11	0.15	0.8 x 1.4
30	0.25	0.11	0.15	0.8 x 1.2
