Product Name:

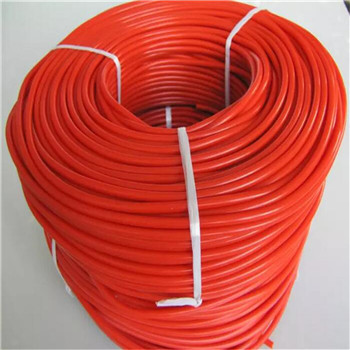

UL 1723 TELFON WIRE
Number :
 |
Insulation:FEP TELFON
Condutor:Tinned Copper
Temperature range:-80℃~+200℃
Rated Voltage:No Request
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for home appliance,lighting lamps(cold light source)，small motors,temperature sensors,
electromagnetic coils,automotive interior cables,electronic appliances,etc.
|
AWG |
Condutor Construction (mm) |
Insulation Thickness(mm) |
Outer Diameter (mm） |
Max.CondutorResistance DC20℃（Ω/km） |
Packing (m) |
|
16 |
19×0.30 |
0.26 |
2.02 |
14.6 |
305 |
|
17 |
19×0.26 |
0.26 |
1.82 |
18.3 |
305 |
|
18 |
19×0.23 |
0.26 |
1.67 |
23.2 |
305 |
|
20 |
19×0.20 |
0.26 |
1.62 |
36.7 |
305 |
|
1×0.80 |
0.26 |
1.32 |
35.2 |
305 |
|
|
22 |
19×0.16 |
0.26 |
1.32 |
59.4 |
610 |
|
1×0.65 |
0.26 |
1.17 |
56.4 |
610 |
|
|
24 |
7×0.20 |
0.26 |
1.12 |
94.2 |
610 |
|
1×0.50 |
0.26 |
1.02 |
89.3 |
610 |
|
|
26 |
7×0.16 |
0.26 |
1.00 |
150 |
610 |
|
1×0.40 |
0.26 |
0.92 |
143 |
610 |
|
|
28 |
7×0.12 |
0.26 |
0.88 |
239 |
610 |
|
1×0.32 |
0.26 |
0.84 |
227 |
610 |
|
|
30 |
7×0.10 |
0.26 |
0.82 |
381 |
610 |
|
1×0.254 |
0.26 |
0.774 |
361 |
610 |
|
|
32 |
7×0.08 |
0.26 |
0.76 |
664.8 |
610 |
|
1×0.20 |
0.26 |
0.72 |
588.3 |
610 |
