Product Name:

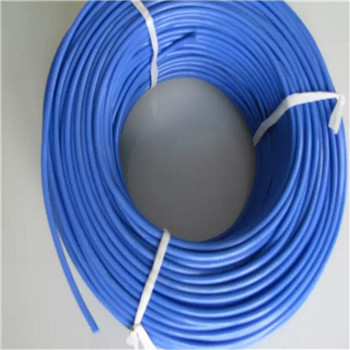

UL 1887/1901 Telfon WIRE
Number :
 |
Insulation:FEP Telfon
Condutor:Tinned Copper
Temperature range:-80℃~+150℃/+200℃
Rated Voltage:600V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for home appliance,lighting lamps(cold light source)，small motors,temperature
sensors,electromagnetic coils,automotive interior cables,electronic appliances,etc.
|
AWG |
Condutor Construction (mm) |
Insulation Thickness (mm) |
Outer Diameter (mm） |
Max.Condutor Resistance DC20℃ （Ω/km） |
Packing (m) |
|
10 |
37×0.43 |
0.36 |
3.73 |
3.546 |
305 |
|
12 |
19×0.49 |
0.36 |
3.17 |
5.64 |
305 |
|
14 |
19×0.37 |
0.36 |
2.57 |
8.96 |
305 |
|
16 |
19×0.30 |
0.36 |
2.22 |
14.6 |
305 |
|
17 |
19×0.26 |
0.36 |
2.02 |
18.3 |
305 |
|
18 |
19×0.23 |
0.36 |
1.87 |
23.2 |
305 |
|
20 |
19×0.19 |
0.36 |
1.67 |
36.7 |
305 |
|
1×0.80 |
0.36 |
1.52 |
35.2 |
305 |
|
|
22 |
19×0.16 |
0.36 |
1.52 |
59.4 |
610 |
|
1×0.65 |
0.36 |
1.37 |
56.4 |
610 |
|
|
24 |
7×0.20 |
0.36 |
1.32 |
94.2 |
610 |
|
1×0.50 |
0.36 |
1.22 |
89.3 |
610 |
|
|
26 |
7×0.16 |
0.36 |
1.20 |
150 |
610 |
|
1×0.40 |
0.36 |
1.12 |
143 |
610 |
|
|
28 |
7×0.12 |
0.36 |
1.08 |
239 |
610 |
|
1×0.32 |
0.36 |
1.04 |
227 |
610 |
|
|
30 |
7×0.10 |
0.36 |
1.02 |
381 |
610 |
|
1×0.254 |
0.36 |
0.974 |
361 |
610 |
