Product Name:

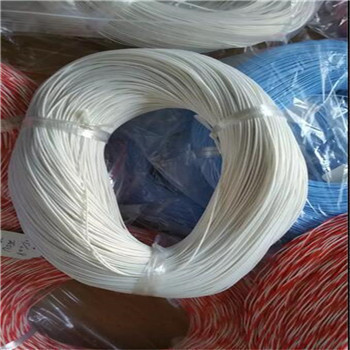

AFR 250 telfon WIRE
Number :
 |
Insulation:PTFE telfon
Condutor:Silver, Nickel Copper or Copper
Temperature range:-60℃~+250℃
Rated Voltage:125V/300V/600V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Purple-Gray
used for oil equipment,electric machinery, automotive cables,outdoor lighting,PTC thermistors,electronic components,etc.
|
Sectional Area (mm²) |
Condutor Construction (mm) |
Insulation (mm) |
Outer Diameter (mm） |
Max. Condutor ResisTance DC20℃ （Ω/km） |
||||
|
125V |
300V |
600V |
125V |
300V |
600V |
|||
|
0.035 |
7/0.08 |
0.10 |
0.15 |
0.25 |
0.45 |
0.55 |
0.80 |
525 |
|
0.05 |
10/0.08 |
0.10 |
0.15 |
0.25 |
0.50 |
0.60 |
0.80 |
370 |
|
0.06 |
12/0.08 |
0.10 |
0.15 |
0.25 |
0.50 |
0.60 |
0.85 |
330 |
|
0.07 |
14/0.08 |
0.10 |
0.15 |
0.25 |
0.60 |
0.70 |
0.90 |
260 |
|
0.09 |
19/0.08 |
0.10 |
0.15 |
0.25 |
0.60 |
0.70 |
0.90 |
227 |
|
0.10 |
21/0.08 |
0.10 |
0.15 |
0.25 |
0.65 |
0.75 |
0.95 |
188 |
|
0.12 |
24/0.08 |
0.10 |
0.15 |
0.25 |
0.70 |
0.80 |
1.00 |
165 |
|
0.15 |
30/0.08 |
0.10 |
0.15 |
0.25 |
0.70 |
0.80 |
1.00 |
150 |
|
0.20 |
40/0.08 |
0.10 |
0.15 |
0.25 |
0.82 |
0.90 |
1.10 |
90.4 |
|
0.35 |
70/0.08 |
|
0.15 |
0.25 |
|
1.10 |
1.30 |
53.1 |
|
0.50 |
105/0.08 |
|
0.15 |
0.25 |
|
1.20 |
1.45 |
36 |
|
0.75 |
150/0.08 |
|
0.20 |
0.30 |
|
1.55 |
1.75 |
22.7 |
|
1.00 |
200/0.08 |
|
0.20 |
0.30 |
|
1.70 |
1.90 |
19 |
|
1.20 |
240/0.08 |
|
0.20 |
0.30 |
|
1.85 |
2.0 |
15.3 |
|
1.50 |
300/0.08 |
|
0.20 |
0.30 |
|
2.00 |
2.20 |
11.7 |
|
2.00 |
400/0.08 |
|
0.20 |
0.30 |
|
2.30 |
2.45 |
9.45 |
|
2.50 |
500/0.08 |
|
|
0.30 |
|
|
2.95 |
6.86 |
