Product Name:

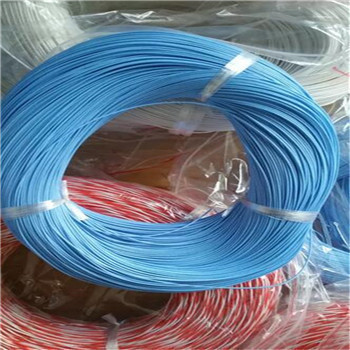

AF200（FF46-2）telfon WIRE
Number :
 |
Insulation:FEP telfon
Condutor:Silver Copper
Temperature range:-65℃~+200℃
Rated Voltage:600V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for home appliance,lighting lamps(cold light source)，small motors,temperature sensors,electromagnetic coils,
automotive interior cables,electronic appliances,etc.
|
Sectional Area (mm²) |
Condutor Construction (mm) |
Insulation Thickness (mm) |
Outer Diameter (mm） |
Max. Condutor Resistance DC20℃ （Ω/km |
Packing (m) |
|
0.05 |
7/0.10 |
0.15 |
0.60 |
330 |
500 |
|
0.08 |
7/0.12 |
0.20 |
0.78 |
327 |
500 |
|
0.12 |
7/0.15 |
0.20 |
0.85 |
150 |
500 |
|
0.20 |
7/0.20 |
0.25 |
1.10 |
83.5 |
200 |
|
0.35 |
19/0.16 |
0.25 |
1.30 |
49.5 |
200 |
|
0.50 |
19/0.18 |
0.25 |
1.40 |
36.0 |
200 |
|
0.75 |
19/0.23 |
0.25 |
1.70 |
22.7 |
200 |
|
1.0 |
19/0.26 |
0.25 |
1.80 |
19.0 |
200 |
|
1.20 |
19/0.28 |
0.30 |
2.0 |
15.3 |
200 |
|
1.50 |
19/0.32 |
0.30 |
2.20 |
11.7 |
200 |
|
2.0 |
19/0.37 |
0.30 |
2.45 |
9.45 |
100 |
|
2.5 |
19/0.41 |
0.40 |
2.95 |
6.86 |
100 |
|
4.0 |
37/0.37 |
0.40 |
3.40 |
4.51 |
100 |
|
6.0 |
37/0.45 |
0.50 |
4.20 |
3.05 |
100 |
|
8.0 |
133/0.28 |
0.50 |
5.20 |
2.16 |
100 |
|
10 |
133/0.32 |
0.50 |
5.80 |
1.68 |
100 |
|
16 |
133/0.39 |
0.60 |
7.00 |
1.13 |
100 |
|
20 |
133/0.45 |
0.60 |
8.0 |
0.886 |
100 |
|
25 |
196/0.40 |
0.6 |
8.8 |
0.734 |
100 |
|
35 |
494/0.30 |
0.7 |
10.4 |
0.511 |
100 |
|
50 |
396/0.40 |
0.8 |
12.2 |
0.358 |
100 |
|
70 |
551/0.40 |
1.0 |
14.6 |
0.270 |
100 |
|
95 |
760/0.40 |
1.2 |
17.2 |
0.210 |
100 |
