Product Name:

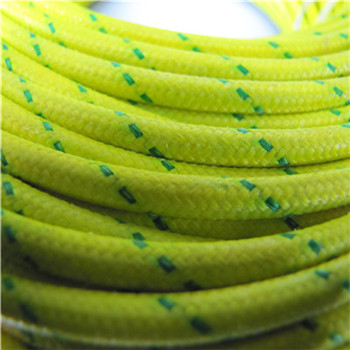

GN500-01 FIRE RESISTANCE WIRE
Number :
 |
Condutor: Bare Copper
Temperature range:-60℃~+350℃
Rated Voltage: 500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for electric heating,petrochemical,electrical and mechanical equipment,power plant,drying pathdrying room,heating source for lighting,
electric appliances and other high temperature areas.
|
Sectional Area (mm²) |
Condutor Construction (mm) |
Insulation Thickness (mm) |
Outer Diameter (mm） |
Max. Resistance DC20℃ （Ω/km |
Packing (m) |
|
0.5 |
7×0.30 |
0.5 |
2.6±0.3 |
39 |
200 |
|
0.75 |
11×0.30 |
0.5 |
2.7±0.3 |
26 |
200 |
|
1 |
14×0.30 |
0.5 |
2.8±0.3 |
19.5 |
200 |
|
1.5 |
21×0.30 |
0.5 |
3.0±0.3 |
13.3 |
100 |
|
2 |
28×0.30 |
0.6 |
3.3±0.5 |
10.0 |
100 |
|
2.5 |
35×0.30 |
0.6 |
3.6±0.5 |
7.98 |
100 |
|
4 |
56×0.30 |
0.8 |
4.7±0.5 |
4.95 |
100 |
|
6 |
84×0.30 |
0.8 |
5.5±0.5 |
3.30 |
100 |
|
10 |
84×0.40 |
0.8 |
6.6±0.5 |
1.91 |
100 |
|
16 |
228×0.30 |
0.8 |
7.8±0.5 |
1.21 |
100 |
|
126×0.40 |
0.8 |
7.8±0.5 |
1.21 |
100 |
|
|
25 |
196×0.40 |
0.8 |
9.5±0.5 |
0.78 |
100 |
|
361×0.30 |
0.8 |
9.5±0.5 |
0.78 |
100 |
|
|
35 |
494×0.30 |
0.8 |
11.2±1.0 |
0.554 |
100 |
|
50 |
396×0.40 |
1.2 |
13.2±1.0 |
0.386 |
100 |
|
703×0.30 |
1.2 |
13.2±1.0 |
0.386 |
100 |
|
|
70 |
551×0.40 |
1.2 |
15.4±1.0 |
0.272 |
100 |
|
988×0.30 |
1.2 |
15.4±1.0 |
0.272 |
100 |
|
|
95 |
760×0.40 |
1.2 |
17.4±1.0 |
0.206 |
100 |
