Product Name:

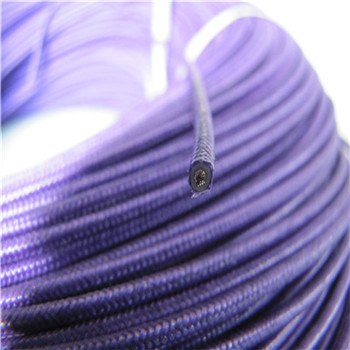

GBB/AGRP SILICONE FIBERGLASS WIRE
Number :
 |
Insulation:Fiberglass+silicone
Insulation:Silicone Rubber
Condutor:Tinned Copper
Temperature range:-60℃~+180℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:
White-Blue-Red-Black-Yellow-Green-Transparent-
Yellew/Green
Used for heating source for lighting,electric machinery,air conditioning,oven,drying path,auto ignition
appliance etc.
|
Sectional Area (mm2) |
Condutor Construction (mm) |
Insulation Thickness (mm) |
PleachThick- ness(mm) |
OuterDiameter (mm) |
Max.conductor Resistance DC20℃（Ω/㎞） |
|
0.20 |
12×0.15 |
0.50 |
0.15 |
1.80 |
95 |
|
0.30 |
16×0.15 |
0.50 |
0.15 |
2.00 |
71.2 |
|
0.40 |
23×0.15 |
0.50 |
0.15 |
2.20 |
49.6 |
|
0.50 |
28×0.15 |
0.50 |
0.15 |
2.20 |
40.1 |
|
0.75 |
42×0.15 |
0.50 |
0.15 |
2.50 |
26.7 |
|
1.0 |
32×0.20 |
0.50 |
0.15 |
2.70 |
20.0 |
|
1.2 |
40×0.20 |
0.50 |
0.15 |
2.80 |
15.9 |
|
1.5 |
48×0.20 |
0.55 |
0.15 |
3.00 |
13.7 |
|
2.0 |
40×0.25 |
0.60 |
0.15 |
3.40 |
9.90 |
|
2.5 |
49×0.25 |
0.65 |
0.15 |
3.70 |
8.21 |
|
4.0 |
56×0.30 |
0.65 |
0.20 |
4.40 |
5.09 |
|
6.0 |
84×0.30 |
0.70 |
0.20 |
5.40 |
3.39 |
|
10 |
84×0.40 |
0.80 |
0.20 |
6.80 |
1.95 |
|
16 |
126×0.40 |
1.20 |
0.25 |
8.90 |
1.24 |
|
25 |
196×0.40 |
1.20 |
0.25 |
10.50 |
0.795 |
|
35 |
494×0.30 |
1.80 |
0.25 |
13.00 |
0.565 |
|
50 |
396×0.40 |
1.80 |
0.30 |
14.80 |
0.393 |
|
70 |
551×0.40 |
1.80 |
0.30 |
17.00 |
0.277 |
|
95 |
760×0.40 |
2.20 |
0.30 |
19.60 |
0.210 |
|
120 |
608×0.50 |
2.20 |
0.35 |
21.00 |
0.164 |
|
150 |
756×0.50 |
2.20 |
0.35 |
23.10 |
0.132 |
|
185 |
925×0.50 |
2.40 |
0.40 |
25.60 |
0.108 |
|
240 |
1221×0.50 |
2.40 |
0.40 |
28.60 |
0.0817 |
|
300 |
1517×0.50 |
2.80 |
0.40 |
32.40 |
0.0654 |
