Product Name:

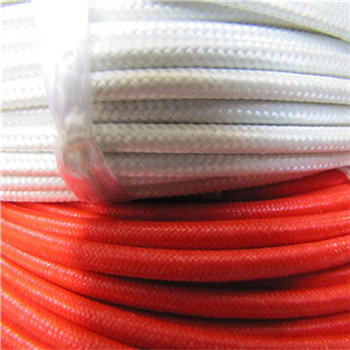

UL3071 UL3074 UL3075 UL3122 SILICONE FIBERGLASS WIRE
Number :
 |
Insulation:Fiberglass+Silicone
Insulation:Silicone Rubber
Condutor:Tinned Copper
Temperature range:-60℃~+200℃
Rated Voltage:600V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent
-Yellow/Green
Used for heating source for lighting,electric machinery,air conditioning,oven,drying path,auto ignition appliance etc.
|
AWG |
Condutor Construction (mm) |
Insulation Thickness (mm)I |
Sheath Thickness |
Outer Diameter (mm) |
Max. DC20℃ |
Packing (m) |
|
3071-14 |
40×0.26 |
0.78 |
0.15 |
3.76 |
8.96 |
305 |
|
3071-16 |
7×0.50 |
0.78 |
0.15 |
3.36 |
14.6 |
305 |
|
3071-17 |
32×0.20 |
0.78 |
0.15 |
3.20 |
18.3 |
305 |
|
3071-18 |
7×0.40 |
0.78 |
0.15 |
3.06 |
23.2 |
305 |
|
AWG |
Condutor Construction (mm) |
Insulation Thickness (mm) |
Sheath Thickness |
Outer (mm) |
Max. DC20℃ |
Packing (m) |
|
3074-12 |
49×0.30 |
0.78 |
0.15 |
4.56 |
5.46 |
305 |
|
AWG |
Condutor Construction (mm) |
Insulation Thickness (mm) |
Sheath |
Outer (mm) |
Max.Conductor DC20℃ |
Packing (m) |
|
3075-10 |
77×0.30 |
1.15 |
0.15 |
6.30 |
3.546 |
305 |
|
AWG |
Condutor Construction (mm) |
Insulation Thickness (mm)I |
Sheath (mm) |
Outer Diameter (mm) |
Max. Conductor Resistance DC20℃（Ω/㎞） |
Packing (m) |
|
3122-16 |
7×0.50 |
0.39 |
0.15 |
2.58 |
14.6 |
305 |
|
3122-17 |
32×0.20 |
0.39 |
0.15 |
2.42 |
18.3 |
305 |
|
3122-18 |
7×0.40 |
0.39 |
0.15 |
2.28 |
23.2 |
305 |
|
3122-20 |
7×0.32 |
0.39 |
0.15 |
2.04 |
36.7 |
305 |
|
3122-22 |
7×0.26 |
0.39 |
0.15 |
1.86 |
59.4 |
610 |
|
3122-24 |
7×0.20 |
0.39 |
0.15 |
1.68 |
94.2 |
610 |
|
3122-26 |
7×0.16 |
0.39 |
0.15 |
1.56 |
150 |
610 |
