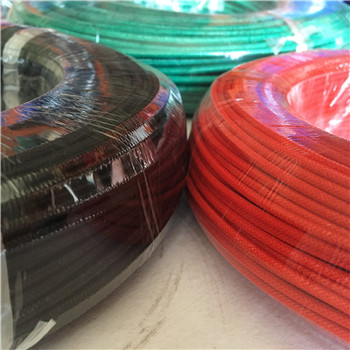

UL3068 SILICONE FIBERGLASS WIRE
 |
Product Name:
UL3068 SILICONE FIBERGLASS WIRE
Number :
 |
Product Description:
TECNICAL DATA
Insulation:Fiberglass+Cilicone
Insulation:Silicone Rubber
Condutor:Tinned Copper
Temperature range:-60℃~+150℃
Rated Voltage:300V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent
-Yellow/Green
Used for heating source for lighting,electric machinery,air
conditioning,oven,
drying path,auto ignition appliance etc.
|
AWG |
Condutor Construction (mm) |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
Outer Diameter (mm) |
Max.conductor Resistance DC20℃ （Ω/㎞） |
Packing (m) |
|
16 |
7×0.50 |
0.39 |
0.15 |
2.58 |
14.6 |
305 |
|
17 |
32×0.20 |
0.39 |
0.15 |
2.42 |
18.3 |
305 |
|
18 |
7×0.40 |
0.39 |
0.15 |
2.28 |
23.2 |
305 |
|
20 |
7×0.32 |
0.39 |
0.15 |
2.04 |
36.7 |
305 |
|
22 |
7×0.26 |
0.39 |
0.15 |
1.86 |
59.4 |
610 |
|
24 |
7×0.20 |
0.39 |
0.15 |
1.68 |
94.2 |
610 |
|
26 |
7×0.16 |
0.39 |
0.15 |
1.56 |
150 |
610 |
|
28 |
7×0.12 |
0.39 |
0.15 |
1.14 |
239 |
610 |
|
30 |
7×0.10 |
0.39 |
0.15 |
1.08 |
381 |
610 |
