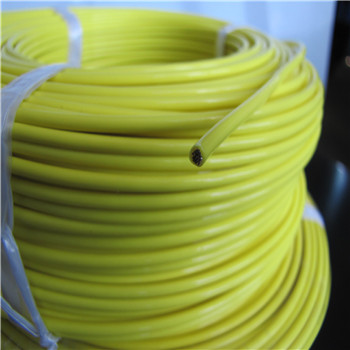

UL3069 SILICONE FIBERGLASS WIRE
 |
Product Name:
UL3069 SILICONE FIBERGLASS WIRE
Number :
 |
Product Description:
TECNICAL DATA
Insulation:Fiberglass+Silicone
Insulation:Silicone Rubber
Condutor:Tinned Copper
Temperature range:-60℃~+150℃
Rated Voltage:600V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent
-Yellow/Green
Used for heating source for lighting,electric machinery,air conditioning,oven,drying path,auto
ignition appliance etc.
|
AWG |
Condutor Construction (mm) |
Insulation Thickness (mm)I |
Sheath Thickness |
Outer (mm) |
Max. |
Packing (m) |
|
20 |
7×0.32 |
0.78 |
0.15 |
2.82 |
36.7 |
305 |
|
22 |
7×0.26 |
0.78 |
0.15 |
2.64 |
59.4 |
610 |
|
24 |
7×0.20 |
0.78 |
0.15 |
2.46 |
94.2 |
610 |
|
26 |
7×0.16 |
0.78 |
0.15 |
2.34 |
150 |
610 |
