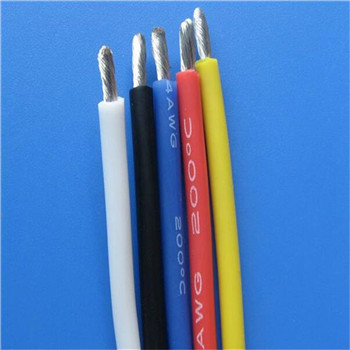

UL3239 SILICONE HIGH VOLTAGE WIRE
Number :
 |
Insulator:Silicone Rubber
Conductor:Tinned Copper
Temperature Range:-60℃~+200℃
Rated Voltage:3KV/6KV/10KV/20KV/30KV/40KV/50KV
O.D.Tolerance: ±0.1㎜
Coulor:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Mainly used for backlight,cold light source,micro high voltage cable ,TV,
microwave ovens,auto meter high voltage cable etc.
|
AWG |
Conductor Construction (No./mm) |
Insulation Thickness （mm) |
Outer Diameter (mm）
|
Max. Conductor Resistance DC20℃ （Ω/㎞）
|
Packing (m)
|
||||||
|
3KV |
6KV |
10KV |
20KV |
3KV |
6KV |
10KV |
20KV |
||||
|
26 |
7×0.16 |
0.55 |
0.85 |
1.0 |
1.3 |
1.58 |
2.18 |
2.48 |
3.08 |
95.8 |
100 |
|
24 |
7×0.20 |
0.55 |
0.85 |
1.0 |
1.3 |
1.71 |
2.31 |
2.61 |
3.21 |
59.4 |
100 |
|
22 |
19×0.15 |
0.55 |
0.85 |
1.0 |
1.3 |
1.86 |
2.46 |
2.76 |
3.36 |
36.7 |
100 |
|
20 |
19×0.18 |
0.55 |
0.85 |
1.0 |
1.3 |
2.00 |
2.60 |
2.90 |
3.50 |
23.2 |
100 |
|
18 |
19×0.23 |
0.55 |
0.85 |
1.0 |
1.3 |
2.25 |
2.85 |
3.15 |
3.75 |
14.6 |
100 |
|
16 |
19×0.30 |
0.55 |
0.85 |
1.0 |
1.3 |
2.60 |
3.20 |
3.50 |
4.10 |
8.96 |
100 |
|
14 |
19×0.37 |
0.55 |
0.85 |
1.0 |
1.3 |
3.00 |
3.60 |
3.90 |
4.50 |
150 |
100 |
|
AWG |
Conductor Construction (No./mm) |
Insulation Thickness （mm) |
Outer Diameter (mm） |
Max.Conductor Resistance DC20℃ （Ω/㎞） |
Packing (m) |
||||
|
30KV |
40KV |
50KV |
30KV |
40KV |
50KV |
||||
|
26 |
7×0.16 |
2.0 |
2.3 |
2.6 |
4.48 |
5.08 |
5.68 |
150 |
100 |
|
24 |
7×0.20 |
2.0 |
2.3 |
2.6 |
4.61 |
5.21 |
5.81 |
95.8 |
100 |
|
22 |
19×0.15 |
2.0 |
2.3 |
2.6 |
4.76 |
5.36 |
5.96 |
59.4 |
100 |
|
20 |
19×0.18 |
2.0 |
2.3 |
2.6 |
4.90 |
5.50 |
6.10 |
36.7 |
100 |
|
18 |
19×0.23 |
2.0 |
2.3 |
2.6 |
5.15 |
5.75 |
6.35 |
23.2 |
100 |
|
16 |
19×0.30 |
2.0 |
2.3 |
2.6 |
5.50 |
6.10 |
6.70 |
14.6 |
100 |
|
14 |
19×0.37 |
2.0 |
2.3 |
2.6 |
5.90 |
6.50 |
7.10 |
8.96 |
100 |
