Product Name:

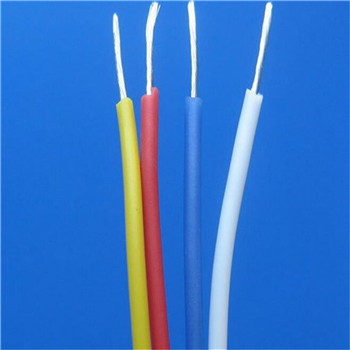

UL1911 Telfon HIGH VOLTAGE WIRE
Number :
 |
Insulator:PFA telfon
Conductor:Silver or Nickel Copper
Temperature Range:-60℃~+250℃
Rated Voltage:5KV/10KV/15KV/20KV/25KV/50KV
O.D.Tolerance: ±0.1㎜
Coulor:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Mainly used for backlight,cold light source,micro high voltage cable ,TV,microwave ovens,auto meter high voltage cable etc.
|
Conductor |
Insulation |
Max.Conductor Resistance DCat20℃ （Ω/km) |
Packing |
||||||||||||
|
5KV |
10KV |
15KV |
20KV |
25KV |
|||||||||||
|
AWG |
Conductor Construction |
Sectional Area |
Thickness |
Outer Diameter |
Thick- ness |
Outer Diameter |
Thick- ness |
Outer Diameter |
Thick- ness |
Outer Diameter |
Thick- ness |
Outer Diameter |
|||
|
Nickel |
Silver |
||||||||||||||
|
24 |
7/0.20 |
0.22 |
0.50 |
1.60 |
0.60 |
1.80 |
0.65 |
1.90 |
0.70 |
2.00 |
0.75 |
2.10 |
97.8 |
89.2 |
305 |
|
22 |
19/0.15 |
0.33 |
0.50 |
1.75 |
0.60 |
1.95 |
0.65 |
2.05 |
0.70 |
2.15 |
0.75 |
2.25 |
67.2 |
56.4 |
305 |
|
20 |
19/0.18 |
0.50 |
0.50 |
1.90 |
0.60 |
2.10 |
0.65 |
2.20 |
0.70 |
2.30 |
0.75 |
2.40 |
40.1 |
35.3 |
305 |
|
18 |
19/0.23 |
0.80 |
0.50 |
2.15 |
0.60 |
2.35 |
0.65 |
2.45 |
0.70 |
2.55 |
0.75 |
2.65 |
24.7 |
22.2 |
305 |
|
17 |
19/0.26 |
1.0 |
0.50 |
2.30 |
0.60 |
2.50 |
0.65 |
2.60 |
0.70 |
2.70 |
0.75 |
2.80 |
20.0 |
17.6 |
305 |
|
16 |
19/0.30 |
1.31 |
0.50 |
2.50 |
0.60 |
2.60 |
0.65 |
2.80 |
0.70 |
2.90 |
0.75 |
3.00 |
16.2 |
14.0 |
305 |
|
14 |
19/0.37 |
2.08 |
0.50 |
2.85 |
0.60 |
3.05 |
0.65 |
3.15 |
0.70 |
3.25 |
0.75 |
3.35 |
9.50 |
8.78 |
305 |
|
12 |
19/0.48 |
3.31 |
0.50 |
3.40 |
0.60 |
3.60 |
0.65 |
3.70 |
0.70 |
3.80 |
0.75 |
3.90 |
6.08 |
5.53 |
305 |
|
10 |
37/0.43 |
5.30 |
0.50 |
4.05 |
0.60 |
4.25 |
0.65 |
4.30 |
0.70 |
4.40 |
0.75 |
4.50 |
3.73 |
3.47 |
305 |
|
Conductor |
Insulation |
Max.Conductor Resistance DCat20℃（Ω/km) |
Packing |
||||||||||
|
30KV |
35KV |
40KV |
50KV |
||||||||||
|
AWG |
Conductor Construction |
Sectional Area |
Thick- ness |
Outer Diameter |
Thick- ness |
Outer Diameter |
Thick- ness |
Outer Diameter |
Thick- ness |
Outer Diameter |
|||
|
Nickel |
Silver |
||||||||||||
|
24 |
7/0.20 |
0.22 |
0.85 |
2.30 |
0.90 |
2.40 |
1.0 |
2.60 |
1.15 |
2.90 |
97.8 |
89.2 |
305 |
|
22 |
19/0.15 |
0.33 |
0.85 |
2.45 |
0.90 |
2.55 |
1.0 |
2.75 |
1.15 |
3.05 |
67.2 |
56.4 |
305 |
|
20 |
19/0.18 |
0.50 |
0.85 |
2.60 |
0.90 |
2.70 |
1.0 |
2.90 |
1.15 |
3.20 |
40.1 |
35.3 |
305 |
|
18 |
19/0.23 |
0.80 |
0.85 |
2.85 |
0.90 |
2.95 |
1.0 |
3.15 |
1.15 |
3.45 |
24.7 |
22.2 |
305 |
|
17 |
19/0.26 |
1.0 |
0.85 |
3.00 |
0.90 |
3.10 |
1.0 |
3.30 |
1.15 |
3.60 |
20.0 |
17.6 |
305 |
|
16 |
19/0.30 |
1.31 |
0.85 |
3.20 |
0.90 |
3.30 |
1.0 |
3.50 |
1.15 |
3.80 |
16.2 |
14.0 |
305 |
|
14 |
19/0.37 |
2.08 |
0.85 |
3.55 |
0.90 |
3.65 |
1.0 |
3.85 |
1.15 |
4.15 |
9.50 |
8.78 |
305 |
|
12 |
19/0.48 |
3.31 |
0.85 |
4.10 |
0.90 |
4.20 |
1.0 |
4.40 |
1.15 |
4.70 |
6.08 |
5.53 |
305 |
|
10 |
37/0.43 |
5.30 |
0.85 |
4.75 |
0.90 |
4.85 |
1.0 |
5.05 |
1.15 |
5.35 |
3.73 |
3.47 |
305 |
