Product Name:

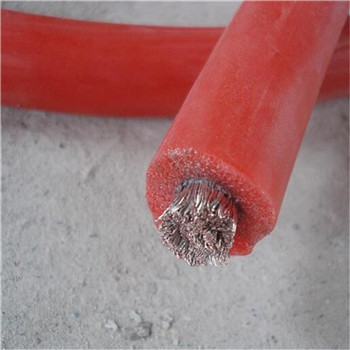

SILICONE HIGH VOLTAGE WIRE AGG-AC
Number :
 |
Insulator:Silicone Rubber
Conductor:Tinned Copper
Temperature Range:-60℃~+200℃
Rated Voltage:1kv/3kv/6kv/10kv/35kv
O.D.Tolerance: ±0.1㎜
Coulor:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Mainly used in high-voltage cabinet,power systems,high voltage electric
machineries,television receivers,transformers,high-voltage cable for electronic instruments etc.
|
Voltage Rating (KV) |
Sectional Area (mm2) |
Conductor Construction (No./mm) |
Outer Diameter （mm) |
Max. Resistance DC20℃ （Ω/㎞） |
Packing (m) |
|
1
|
0.50 |
16/0.20 |
3.30 |
40.1 |
100 |
|
0.75 |
24/0.20 |
3.60 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
3.70 |
20.0 |
100 |
|
|
1.50 |
30/0.25 |
4.00 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
4.30 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
4.40 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
5.60 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
6.60 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
7.80 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
9.00 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
11.20 |
0.795 |
100 |
|
|
35.0 |
494/0.30 |
12.80 |
0.565 |
100 |
|
|
50.0 |
396/0.40 |
15.0 |
0.393 |
100 |
|
|
70.0 |
551/0.40 |
17.20 |
0.277 |
100 |
|
|
95.0 |
760/0.40 |
19.80 |
0.210 |
100 |
|
|
120.0 |
608/0.50 |
21.50 |
0.164 |
100 |
|
|
150.0 |
760/0.50 |
23.40 |
0.132 |
100 |
|
|
185.0 |
925/0.50 |
25.2 |
0.108 |
100 |
|
|
3 |
0.50 |
16/0.20 |
4.90 |
40.1 |
100 |
|
0.75 |
24/0.20 |
5.20 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
5.30 |
20.0 |
100 |
|
|
1.50 |
30/0.25 |
6.00 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
6.25 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
6.80 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
7.60 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
8.80 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
9.80 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
11.40 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
13.20 |
0.795 |
100 |
|
|
6 |
0.50 |
16/0.20 |
5.90 |
40.1 |
100 |
|
0.75 |
24/0.20 |
6.20 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
6.30 |
20.0 |
100 |
|
|
1.50 |
30/0.25 |
7.20 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
7.50 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
8.00 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
8.80 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
10.0 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
11.0 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
12.80 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
14.60 |
0.795 |
100 |
|
|
10 |
0.30 |
7/0.26 |
9.00 |
71.2 |
100 |
|
0.50 |
16/0.20 |
9.00 |
40.1 |
100 |
|
|
0.75 |
24/0.20 |
9.00 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
9.00 |
20.0 |
100 |
|
|
1.50 |
30/0.25 |
9.00 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
10.0 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
10.0 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
10.0 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
11.0 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
12.0 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
13.80 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
15.6 |
0.795 |
100 |
|
|
35 |
4.00 |
56/0.30 |
18.0 |
5.09 |
100 |
|
6.00 |
84/0.30 |
18.0 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
19.0 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
20.0 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
21.0 |
0.795 |
100 |
|
|
35.0 |
494/0.30 |
23.0 |
0.565 |
100 |
|
|
50.0 |
396/0.40 |
25.0 |
0.393 |
100 |
|
|
70.0 |
551/0.40 |
27.0 |
0.277 |
100 |
|
|
95.0 |
760/0.40 |
29.0 |
0.210 |
100 |
