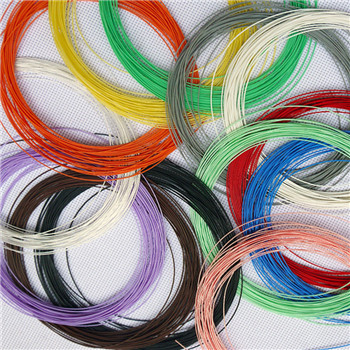

UL 3135 SILICONE WIRE
 |
Product Name:
UL 3135 SILICONE WIRE
Number :
 |
Product Description:
TECNICAL DATA
Insulation:Silicone Rubber
Condutor:Tinned,Silver or Nickel Copper
Temperature range:-60℃~+200℃
Rated Voltage:600V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for various electric machineries,electronic ceramics,heating parts,car lighting,lighting,ballast etc.
|
AWG |
Condutor Construction No./mm |
Insulation Thickness (mm) |
Outer Diameter (mm） |
Max. Condutor Resistance DC20℃ （Ω/km） |
Packing (m) |
|
10 |
77×0.30 |
0.78 |
5.10 |
3.546 |
305 |
|
12 |
49×0.30 |
0.78 |
4.26 |
5.64 |
305 |
|
14 |
40×0.26 |
0.78 |
3.46 |
8.96 |
305 |
|
16 |
7×0.50 |
0.78 |
3.06 |
14.6 |
305 |
|
17 |
32×0.20 |
0.78 |
2.90 |
18.3 |
305 |
|
18 |
7×0.40 |
0.78 |
2.76 |
23.2 |
305 |
|
20 |
7×0.32 |
0.78 |
2.52 |
36.7 |
305 |
|
22 |
7×0.26 |
0.78 |
2.34 |
59.4 |
610 |
|
24 |
7×0.20 |
0.78 |
2.16 |
94.2 |
610 |
|
26 |
7×0.16 |
0.78 |
2.04 |
150 |
610 |
|
28 |
7×0.12 |
0.78 |
1.92 |
239 |
610 |
|
30 |
7×0.10 |
0.78 |
1.86 |
381 |
610 |
