Product Name:

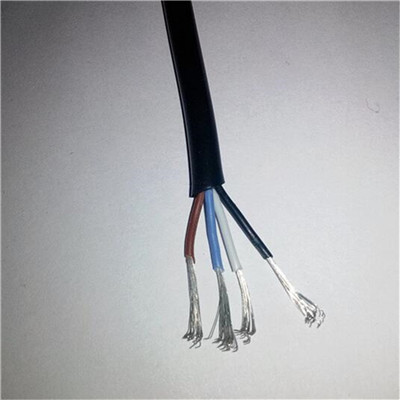

YGC/YGCP MULTI-CORE HIGH TEMPERATURE CABLE
Number :
 |
Jacket:Silicone Rubber
Insulator: Silicone Rubber
Conductor:Tinned Copper
Temperature Range:-60℃~+200℃
Rated Voltage:450V/750V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green
Be Used all kinds of moving dynamo,power station, pertrochemical industry on high temperature condition and rated voltage of alternating
current is 450V/750V and below.
|
Core number ×Section (㎜²) |
Conductor Construction |
Insulation Thickness |
Core number |
Max.Conductor Resistance DC20℃ |
Packing (m) |
|
4 |
56×0.30 |
1.0 |
2-12 |
5.09 |
100 |
|
6 |
84×0.30 |
1.0 |
2-10 |
3.39 |
100 |
|
10 |
84×0.40 |
1.2 |
1.82 |
100 |
|
|
16 |
126×0.40 |
1.2 |
2-5
|
1.22 |
100 |
|
25 |
196×0.40 |
1.4 |
0.795 |
100 |
|
|
35 |
276×0.40 |
1.4 |
0.565 |
100 |
|
|
50 |
396×0.40 |
1.6 |
0.393 |
100 |
|
|
70 |
360×0.50 |
1.6 |
0.227 |
100 |
|
|
95 |
475×0.50 |
1.8 |
0.210 |
100 |
|
|
120 |
608×0.50 |
1.8 |
0.164 |
100 |
|
|
150 |
756×0.50 |
2.0 |
0.132 |
100 |
|
|
185 |
925×0.50 |
2.2 |
0.108 |
100 |
|
|
240 |
1221×0.50 |
2.4 |
0.0817 |
100 |
